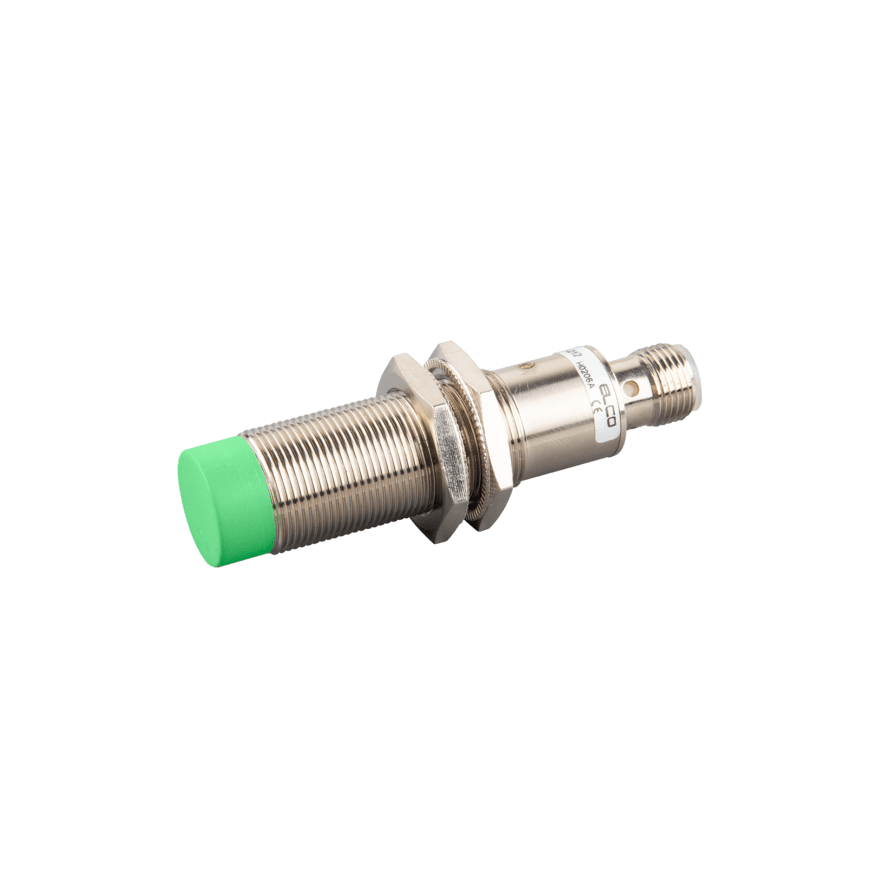

NC8-M18-OSA3L-Q12 Capacitive Sensor
Capacitive Sensor, Metal threaded cylindrical housing M18, Switching distance 8 mm, Non-flush, IP67, -25…70 °C, AC NO, M12 2-pole
In Stock
$31.03
per unit
Applications: Sensors & I/O
Technical Data
| Mounting | Non-flush |
| External dimensions | M18 x 1 |
| Output status | NO |
| Output type | AC |
| Sensing surface material | PBT |
| Housing material | Nickel-plated brass |
| Load current | ≤ 200 mA |
| Sensing range | 8 mm |
| IP rating | IP67 |
| Ambient temperature | -25 … +70 ℃ |
| Connection | M12, 4-pin |
| Switching frequency | 15 Hz |
| Supply voltage | 20 … 250 V AC |
| Product size | M18 x 76.9 mm |
