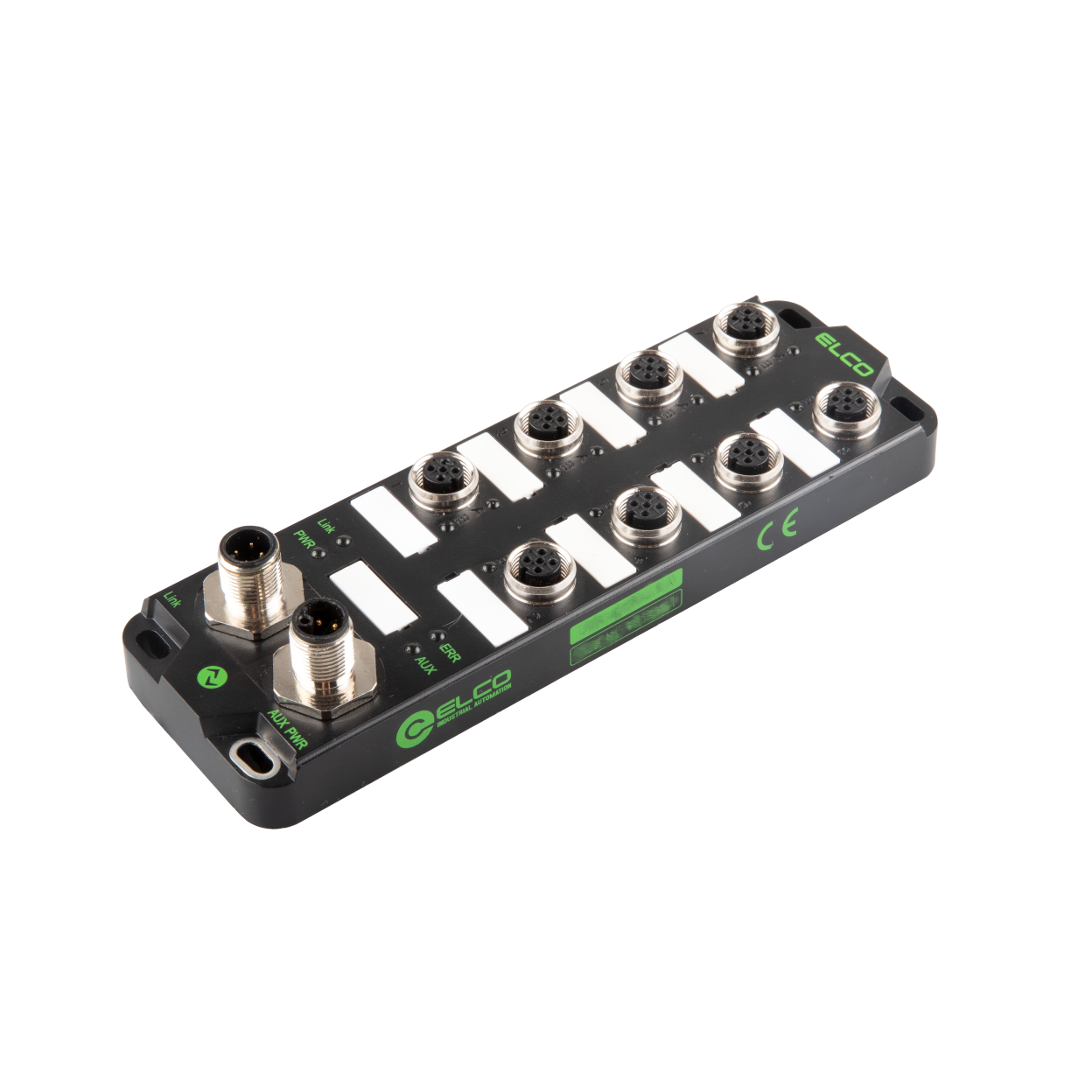

LKHA-0808P-M12-A IO-Link Sensor Hub
IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector and M12 L-code auxiliary power supply, 8 x M12 5-pin, 8 DI, 8 DO, PNP, 24 V DC, Plastic housing, IP67
In Stock
$157.48
per unit
Applications: HMI & Controls, Sensors & I/O
Technical Data
| Communication protocol | IO-Link |
| IP rating | IP67 |
| Housing material | PC + ABS |
| Power connection | 1 x M12 L-Code |
| Fieldbus connection | 1 x M12 A-Code |
| Signal connection | 8 x M12 A-Code |
| Signal type | Digital I/O |
| Input type | PNP |
| Output type | PNP |
| Dimensions | 55 x 170 x 31.5 mm |
| Ambient temperature | -25 … +70 °C |
| Certificate | CE |
| Power supply | 18 … 30 V DC |
| Storage temperature | -40 … +85 °C |
| Number of channels | 8 DI + 8 DO |
