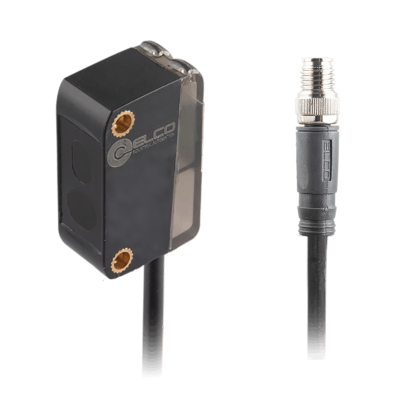

OS10S-AKL350CN6-0.3-Q8 Photoelectric Sensor
Photoelectric Sensor, OS10S-Series, Diffused with BGS, Laser beam, Operating range 6…350 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 4-pin connector
In Stock
$81.98
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | BGS Diffused |
| Sensing range | 6 … 350 mm |
| Light source | Red laser / Class 1 |
| Spot size | 2 mm @ 350 mm |
| Output type | NPN |
| Output status | L.O / D.O |
| Switching frequency | 300 Hz |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 100 mA |
| Ambient temperature | -25 … +55 ℃ |
| Anti-ambient light | ≤ 10000 lux |
| Housing material | PC + PBT |
| Connection | M8 Pigtail |
| Connection type | 0.3 m cable + M8, 4-pin |
| IP rating | IP67 |
