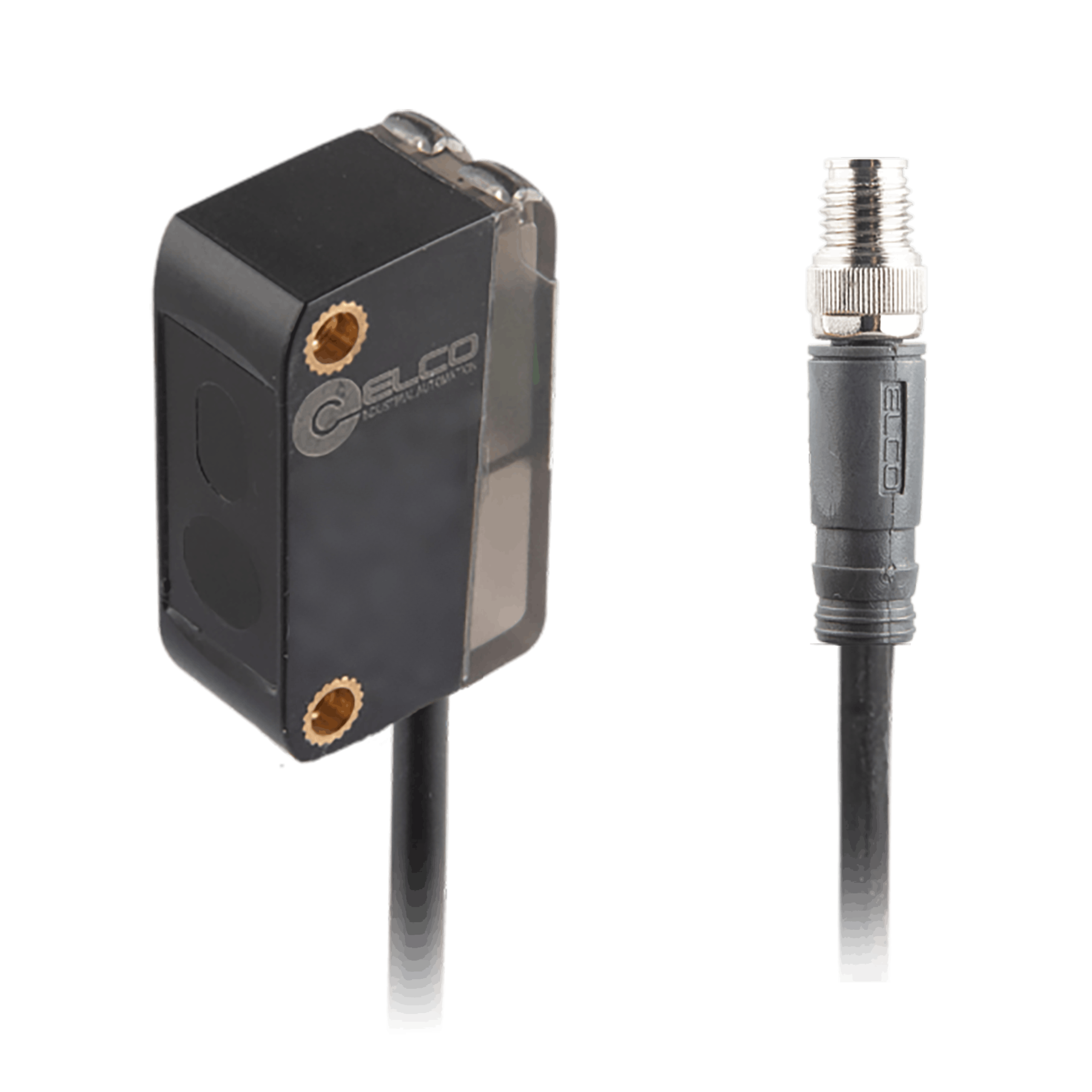

OS10S-K4000/485/R-0.2-Q8 Photoelectric Sensor
Photoelectric Sensor, OS10S-Series, Diffused, Infrared laser, Operating range 50…4000 mm, RS-485, 10…30V DC, -20…60°C, Switching frequency 80 Hz, IP67, 0.2 m + M8 4-pin connector
In Stock
$129.23
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | 0.2 m cable + M8, 4-pin |
| Detection method | TOF BGS Diffused |
| Sensing range | 50 … 4000 mm |
| Light source | Infrared laser + Red LED indication / Class 1 |
| Spot size | 14 × 7 cm @ 4 m |
| Output type | RS-485 |
| Ambient temperature | 0 … +55 ℃ |
| Supply voltage | 10 … 30 V DC |
| IP rating | IP67 |
| Connection | M8 Pigtail |
| Anti-ambient light | ≤ 10000 lux |
| Housing material | PC + PBT |
