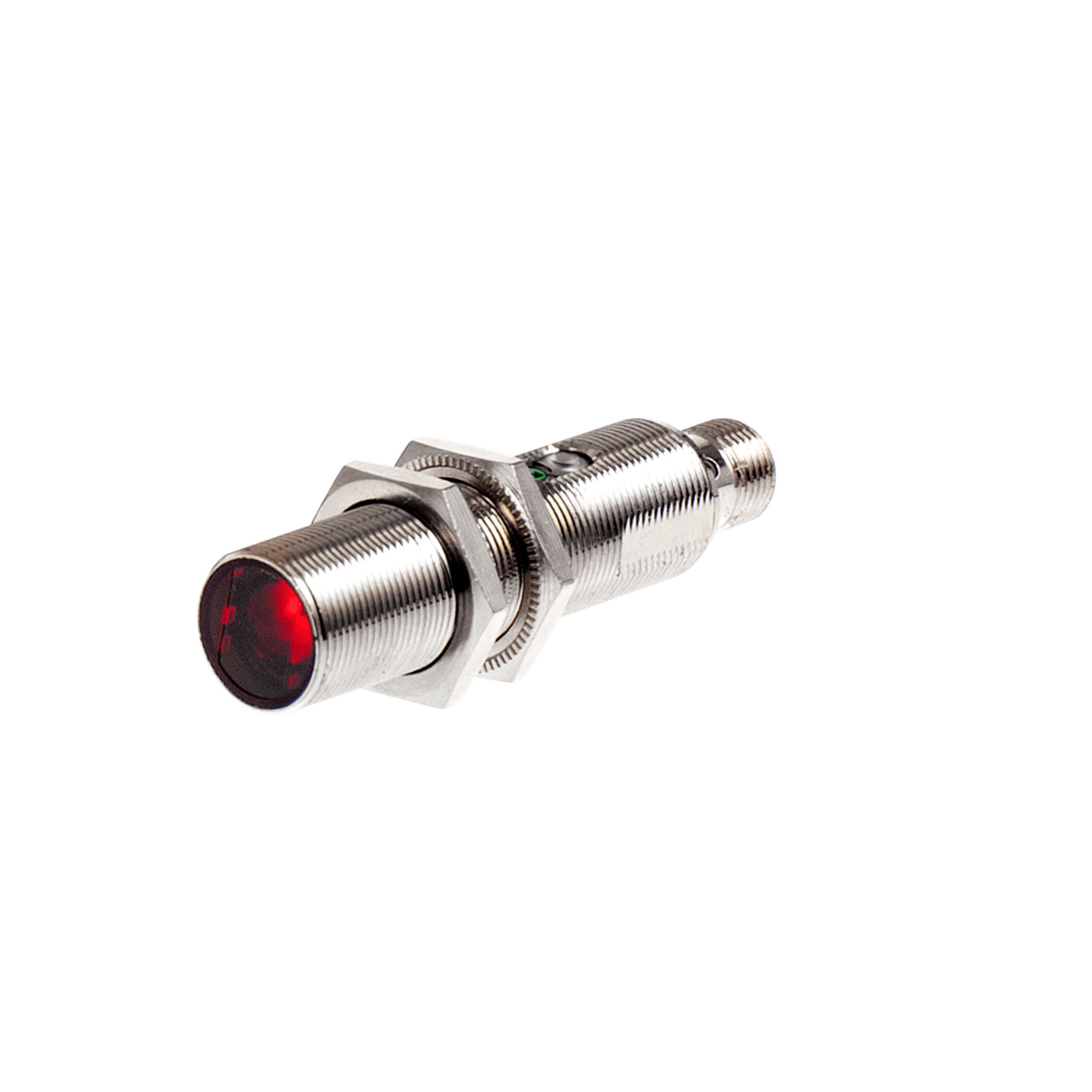

OM18-RVP6Q Photoelectric Sensor
Photoelectric Sensor, OM18-Series, Retro-reflective, Infrared beam, Operating range 3 m, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector
In Stock
$45.39
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | M12, 4-pin |
| Detection method | Retro-reflective |
| Sensing range | 3 m |
| Output status | L.O + D.O |
| Switching frequency | 100 Hz |
| Spot size | 15 mm @ 1 m |
| Output type | PNP |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 100 mA |
| Ambient temperature | -25 … +65 ℃ |
| Anti-ambient light | ≤ 5000 lux |
| IP rating | IP67 |
| Connection | Connector |
| Housing material | Nickel plated brass |
| Light source | Infrared LED |
