ODX202P0107 Fiber-optic amplifier
Fiber-Optic Amplifier
In Stock
$207.00
per unit
Applications: Sensors & I/O
Description
wenglor fiber-optic cables are connected to these sensors. The easy to use teach-in function allows for fine sensor adjustment, so that even transparent objects can be reliably recognized in through-beam mode operation. The scanning width is automatically adapted to each individual application via external teach-in. The sensors can be easily mounted to standard DIN rails.
Features at a Glance
- Large detection and working range
- Recognition of transparent objects
- Reflex and through-beam operation mode are possible
- Key potentiometer, teach-in
- Mount for fiber optic cable adapter 3
Technical Data
Optical Data
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 2 kHz |
| Response Time | 250 µs |
| On-/Off-Delay | 0 … 200 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Teach Mode | NT, MT, ZT, DT, TP |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | M8 × 1; 4-pin |
| DIN-Rail mounting | 35 mm |
| Weight | 25 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,494.72 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| Contamination Output | yes |
| PNP NO | yes |
Adjustable parameters
| Output | Push-pull NPN PNP Contamination Output |
| Circuit | NC NC/NO NO |
Standards and certificates
     |

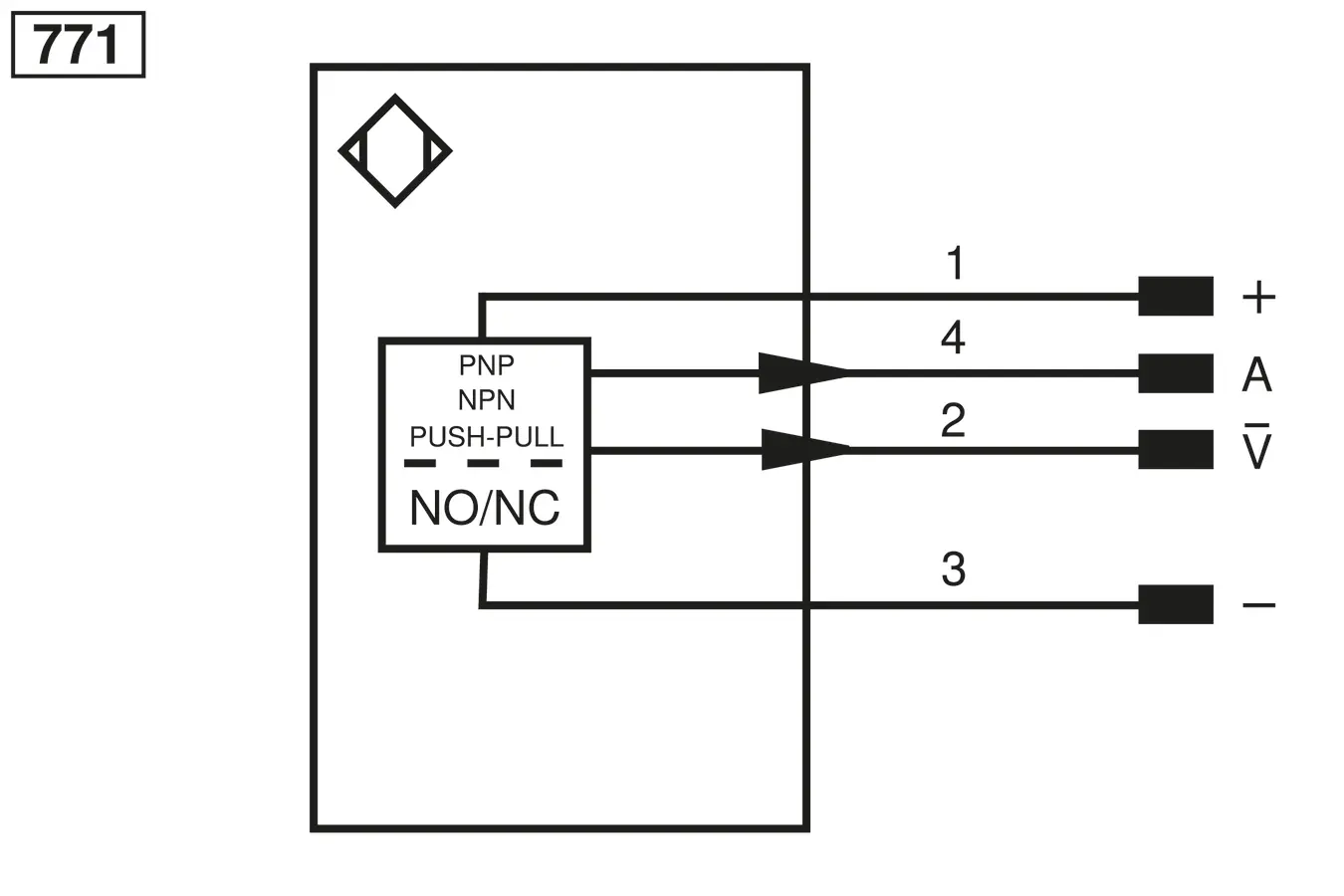

Connection Diagram
 |
Ctrl. Panel
|
07 = Selector Switch
02 = Contamination Warning 01 = Switching Status Indicator 24 = Plus Button 25 = Minus Button |
