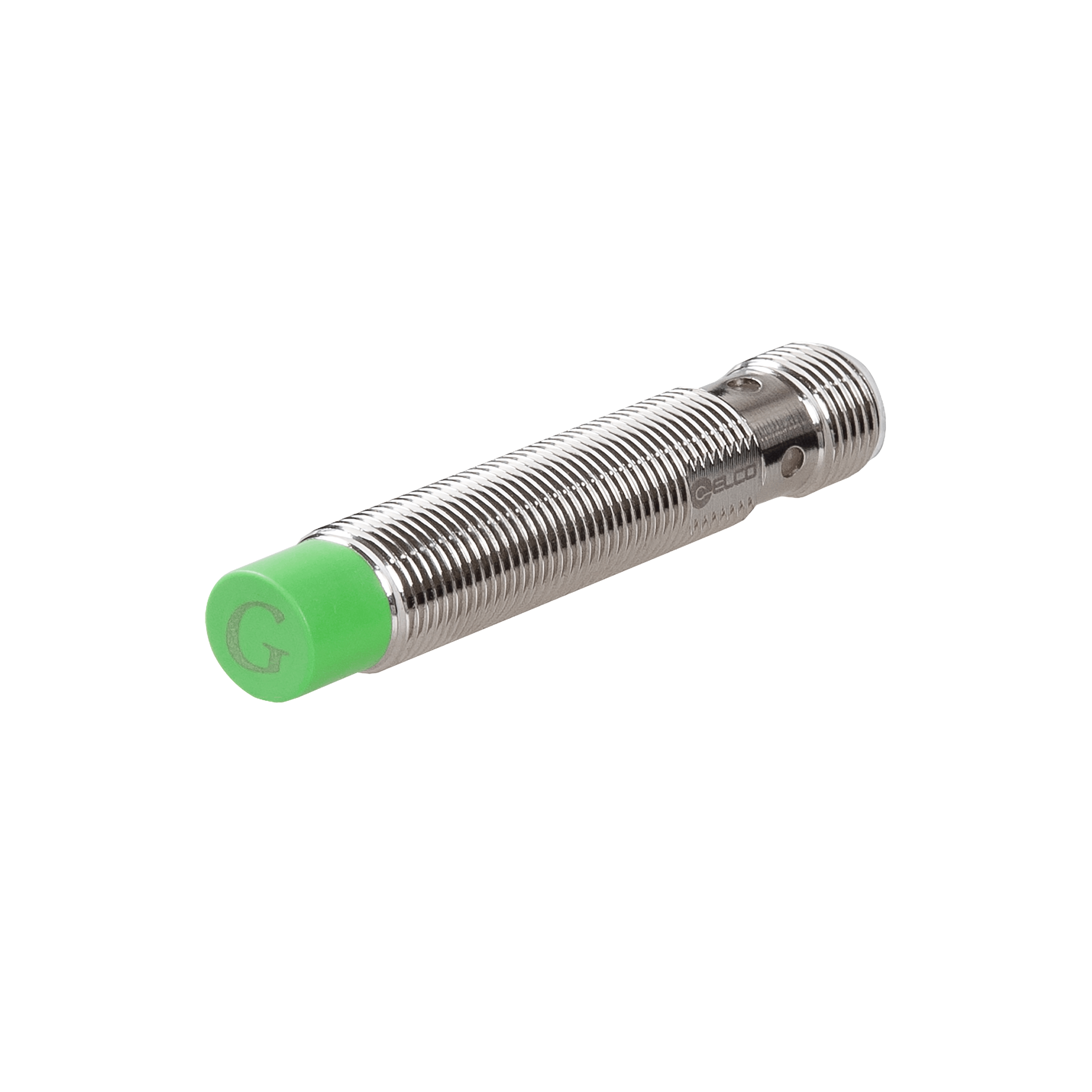

NI8-G12-CN6L-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M12, Switching distance 8 mm, Non-flush, IP68, -30…85 °C, NPN NC, M12 connector
In Stock
$21.31
per unit
Applications: Sensors & I/O
Technical Data
| Housing material | Stainless steel |
| Sensing range | 8 mm |
| Switching frequency | 500 Hz |
| Ambient temperature | -30 … +85 ℃ |
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NC |
| Output type | NPN |
| External dimensions | M12 x 1 |
| Mounting | Non-flush |
| Product size | M12 x 62 mm |
| IP rating | IP68 |
