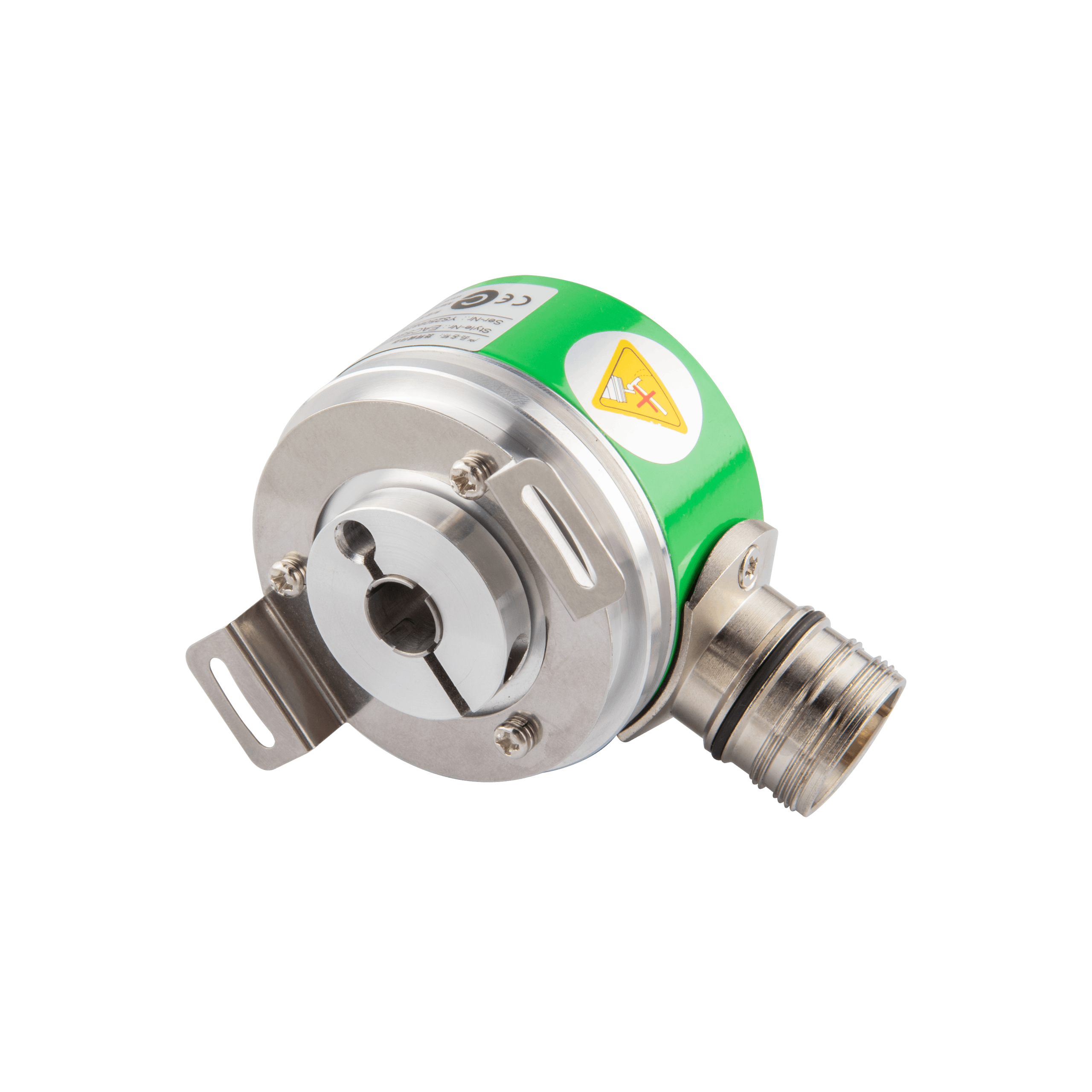

EAC58W10-BP6PTAR-4096EU Absolute Singleturn Encoder
Absolute Singleturn Encoder, EAC58-EU Series, Double-winged spring installation, Hollow shaft Diameter 10H7 mm, Supply Voltage 10…30 VDC, Parallel Interface, PNP Positive, Binary, Radial, M23 17Pin, Resoluteion 4096
In Stock
$445.26
per unit
Applications: Motion Control
Technical Data
| Model | Absolute Singleturn Encoder |
| Housing material | Al-alloy |
| Housing diameter | 58 mm |
| IP rating | IP65 |
| Flange type | Fixing plate |
| Shaft type | Through hollow shaft |
| Shaft diameter | 10 mm |
| Max load capacity of the shaft | 60 N Axial120 N Radial |
| Shock resistance | 50 g, 11 ms |
| Max Speed(rpm) | 6000 rpm |
| Moment of inertia | 1.8 x 10-6 kgm2 |
| Starting torque | ＜ 0.01 Nm |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -20 … +80 °C |
| Weight | 360 g |
| Resolution | 4096 ppr |
| Supply voltage | 10 … 30 V DC |
| Interface type | Parallel |
| Output code | Binary |
| Connection type | M23 17-pin Male |
