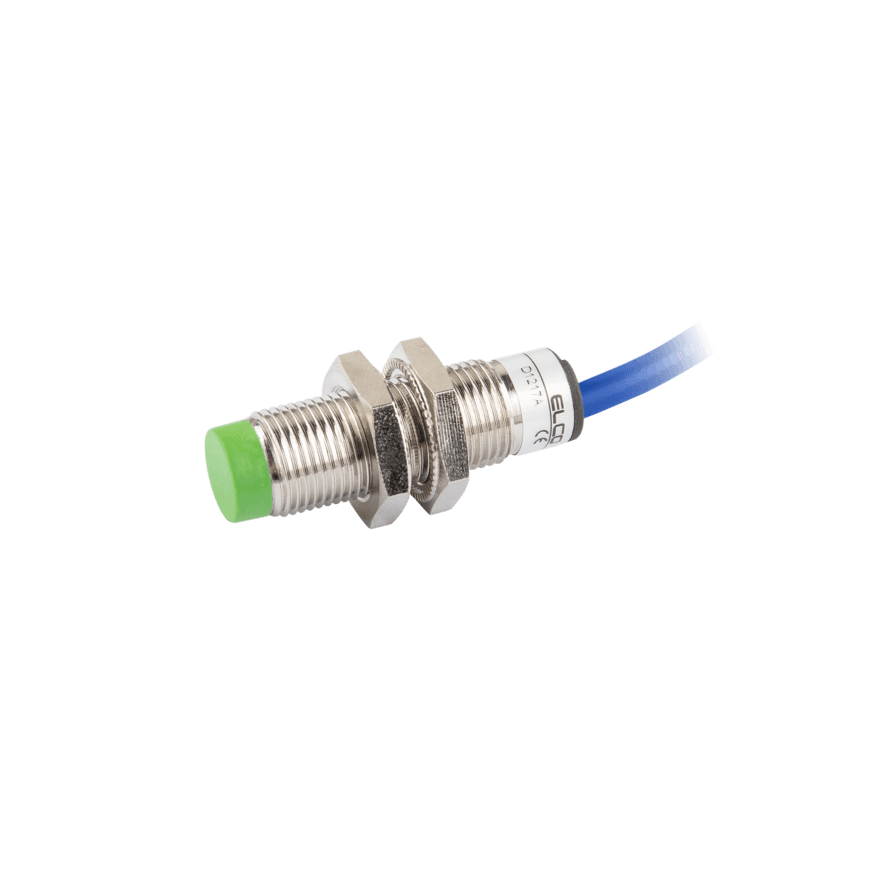

NI4-M12S-NE Inductive Sensor
Inductive Sensor, Short threaded cylindrical housing M12, Switching distance 4m m, Non-flush, IP67, -25…70 °C, NAMUR NC, Cable 2 m
In Stock
$17.60
per unit
Applications: Sensors & I/O
Technical Data
| External dimensions | M12 x 1 |
| Output type | NAMUR |
| Supply voltage | 7.7 … 9 V DC |
| Connection | Cable |
| Sensing range | 4 mm |
| Product size | M12 x 34 mm |
| Cable type | PVC |
| Ambient temperature | -25 … +70 ℃ |
| Housing material | Nickel-plated brass |
| Output status | NC |
| Sensing surface material | PBT |
| Switching frequency | 800 Hz |
| Mounting | Non-flush |
| Cable length | 2 m |
| IP rating | IP67 |
