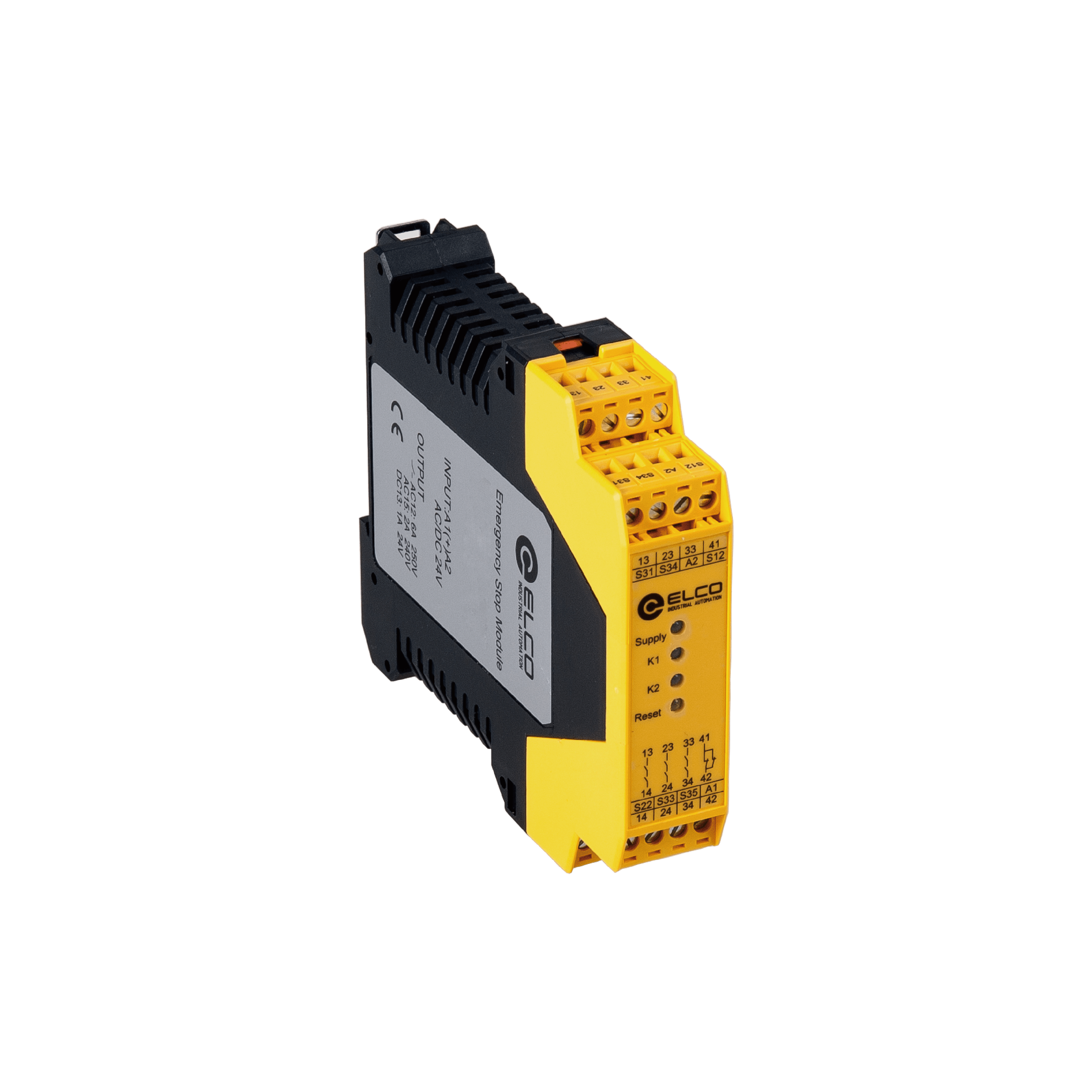

SR22-31/24VUC/ESC SR22 safety relay (standalone)
SR22 safety relay (standalone), Single/dual channel input wiring, Manual/automatic reset, Output contact 3 N/O + 1 N/C, Width 22.5 mm, Plug-in screw terminal, Monitoring of E-Stop, Safety gates.
In Stock
$195.80
per unit
Applications: Safety Systems
Technical Data
| Output contact | 3 N/O + 1 N/C |
| Safety degree | SIL 3, TYPE 4 |
| Connection | Plug-in screw terminal |
| Functions | Emergency stop |
| Product series | SR22 |
| Ambient temperature | 0 … +55 °C |
| IP rating | IP40 |
| Supply voltage | 24 V AC/DC |
