NI20-G18-CP6L Inductive Sensor
Elco Automation | NI20-G18-CP6L

NI20-G18-CP6L Inductive Sensor

Inductive Sensor, Threaded cylindrical housing M18, Switching distance 20 mm, Non-flush, IP68, -25…70 °C, PNP NC, Cable 2 m

In Stock
$33.12 per unit

Applications: Sensors & I/O

Technical Data

Connection Cable
Cable type PVC
Cable length 2 m
IP rating IP68
Switching frequency 200 Hz
Sensing surface material PBT
Ambient temperature -30 … +85 ℃
Output status NC
Mounting Non-flush
External dimensions M18 x 1
Sensing range 20 mm
Housing material Nickel-plated brass
Supply voltage 10 … 30 V DC
Load current ≤ 200 mA
Output type PNP
Product size M18 x 66 mm

Documentation

3D Drawings

  • Icon

    3D Drawing - CAD_SI_G18-N-DPN_V1.0.stp

    1 file(s) 2.73 MB
    Download

Certificates & Compliance

  • Icon

    CE - CE_SI_Metal-Housing_V1.0_EN.pdf

    1 file(s) 410.20 KB
    Download

Datasheets

  • Icon

    Datasheet - DS_SI_G3-18_V1.1_EN.pdf

    1 file(s) 432.97 KB
    Download
  • Icon

    Datasheet - ELCO_G系列_DataSheet_CN.pdf

    1 file(s) 763.72 KB
    Download

Technical Manuals

  • Icon

    Manual - UM_SI_Inductive_V1.0_EN&CN.pdf

    1 file(s) 3.28 MB
    Download

Related Products

OSMT60-T300 Distance Sensor
Elco Automation

OSMT60-T300 Distance Sensor

Distance Sensor, OSMT60-Series, Laser Array Sensor Emitter + Receiver, Red Laser (Class 1), Operating range 300 mm, Measuring range 10 mm, use with controller OSC1, -10…50°C, IP50, 0.3 m Cable + M8 4-pin connector

$661.89

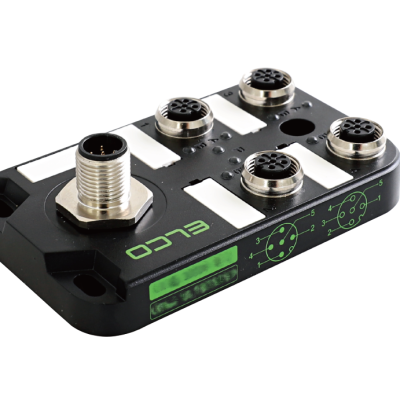

LKHA-08UP-M12 IO-Link Sensor Hub
