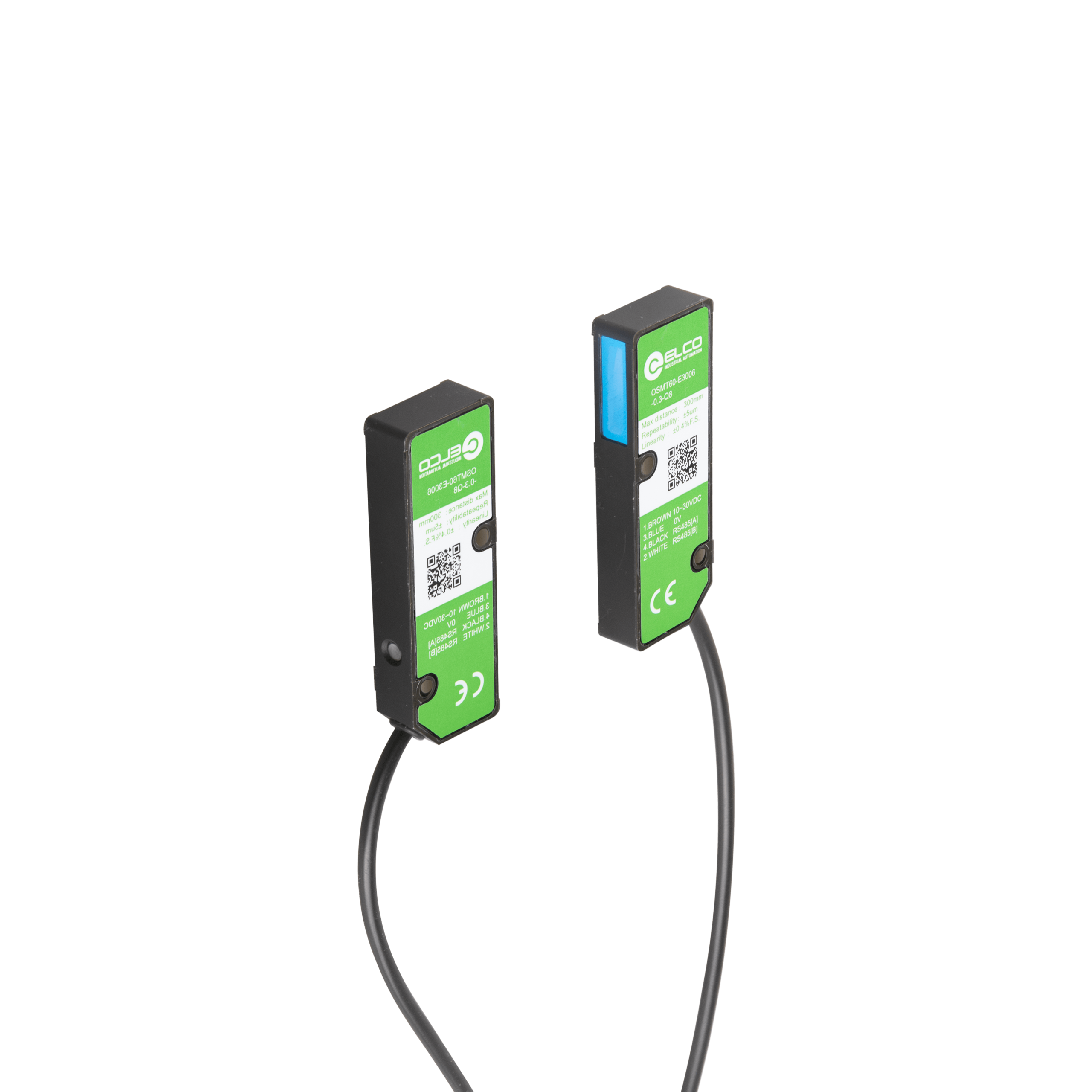

OSMT60-T300 Distance Sensor
Distance Sensor, OSMT60-Series, Laser Array Sensor Emitter + Receiver, Red Laser (Class 1), Operating range 300 mm, Measuring range 10 mm, use with controller OSC1, -10…50°C, IP50, 0.3 m Cable + M8 4-pin connector
In Stock
$661.89
per unit
Applications: Sensors & I/O
Technical Data
| Connection | M8 Pigtail |
| IP rating | IP67 |
| Connection type | 0.3 mm Cable + M8, 4-pin |
| Supply voltage | 10 … 24 V DC |
| Ambient temperature | -10 … +50 ℃ |
| Light source | Red laser / Class 1 |
| Spot size | 3 × 14 mm |
| Response time | 500 us |
| Anti-ambient light | ≤ 5000 lux |
| Housing Material | Aluminum alloy |
| Load current | ≤ 80 mA |
| Detection method | Deviation correction ranging |
| Repeatability | ± 5 um |
| Resolution | 0.001 mm |
| Sensing range | 300 mm |
