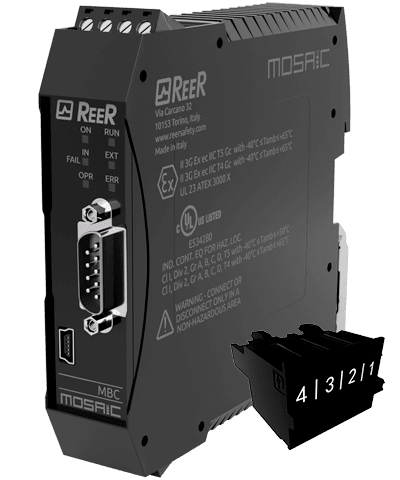

MOSAIC MBCC V
Interface Unit ATEX standards compliant, CANopen, Clamp terminal blocks
In Stock
$650.09
per unit
Applications: HMI & Controls, Safety Systems
Description
Expansion unit for connection to the most common industrial Field-Bus systems for diagnostics and data communication.
Electronics protected by protective film that acts as a barrier against dust and moisture and protects the board from salt and chemical corrosion.
Designed to operate in environments with potentially hazardous atmospheres, it is classified: 3G Ex ec IIC T5 Gc with -40°C ≤ Tamb ≤ +50°C | 3G Ex ec IIC T4 Gc with -40°C ≤ Tamb ≤ +65°C.
Technical Data
Features
| Operating temperature (°C) | – 40 … 65 |
| Signalling | LEDs indication for operating status and fault diagnosis |
| Connections | Removable terminal blocks, clamp contacts – CANopen connector |
| Storage temperature (°C) | -40 … +85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Fieldbus interfaces | CANopen |
| Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
| Product class | B |
| Custom tariff | 85371091 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 99 x 22,5 x 114 |
| Degree of protection | IP20 for housing – IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
