Description

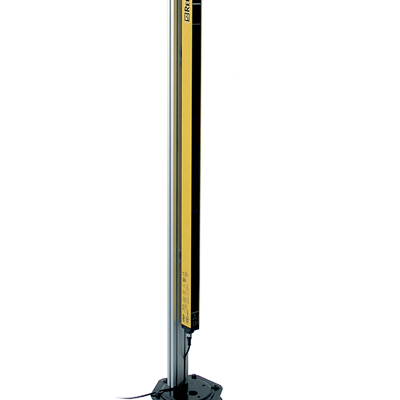

Safety Light Curtain: Type 4, SILCL 3, PL e, Cat. 4
Cross Section: 35 x 45 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain
What’s in the Box: Emitter, Receiver and Standard Fastening Brackets
Technical Data
Features
| Safety level | Type 4 – PL e |
| Protected height (mm) | 460 |
| Resolution (mm) | 20 |
| Max. range (m) | 18 |
| Restart | Automatic |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 4 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | 0 … 55 |
| Response time (ms) | 9,5 |
| Number of beams | 45 |
| Max. length of the connection cables (m) | 50 |
| Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
| Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | M12 5-pole connectors |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 1,33E-08 |
| Safety outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety functions | With external module |
| Detection | Hand |
| Operating Range (m) | Selectable: 0 … 6 m – low range / 1 … 18 m – high range |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 600 x 200 |
| Product class | B |
| Custom tariff | 85365019 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Overall height (mm) | 561 |
| Cross section dimensions (mm) | 35 x 45 |
| Degree of protection | IP65 |
| Fastening | Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional) |
