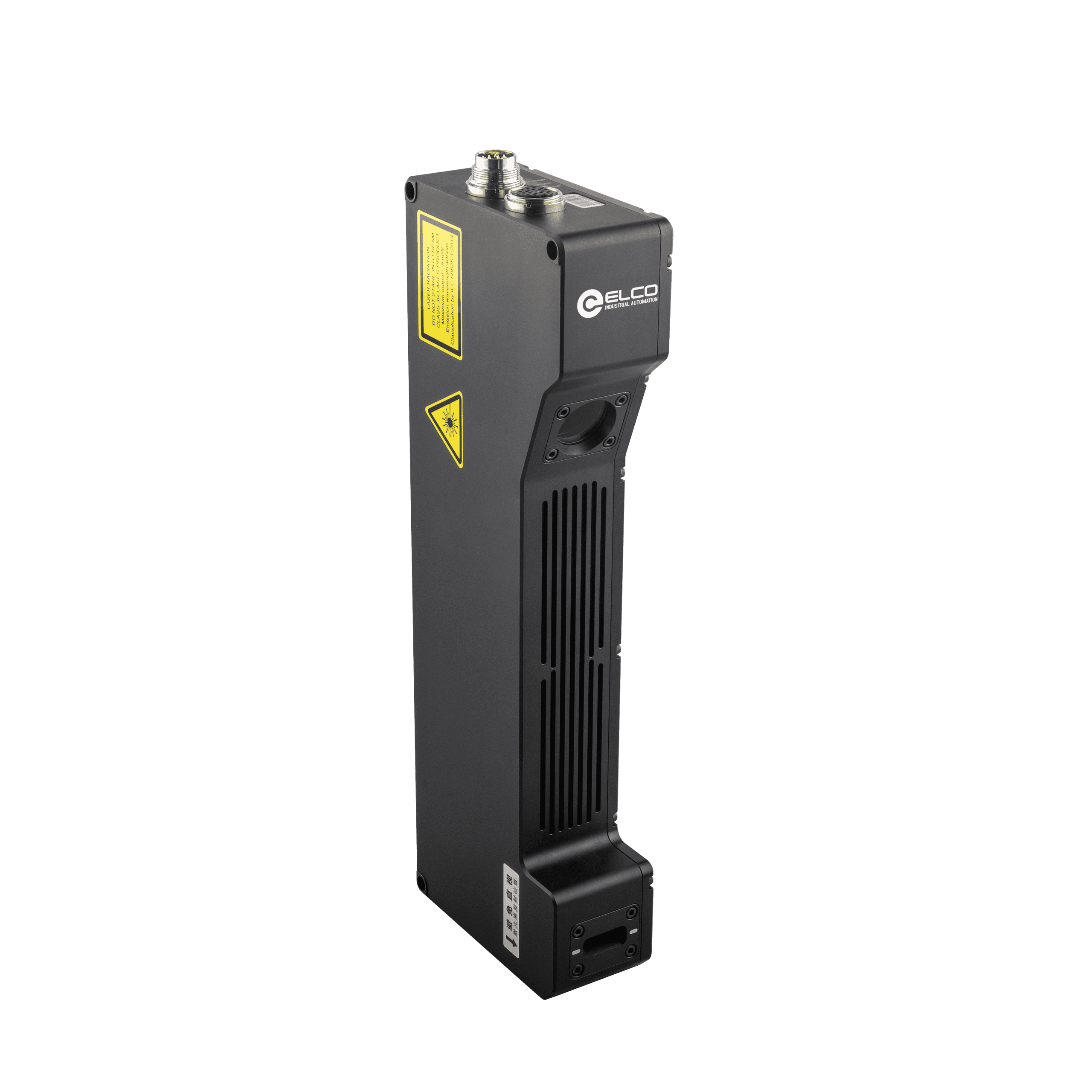

LVM2160 3D Laser profile sensor
3D Laser profile sensor, LVM21 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 360 … 845 mm, FOV 260 … 550 mm,Data points 1456, Scan rate 270 … 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 … 48 VDC, 0…50 °C, IP67
In Stock
$13,524.99
per unit
Applications: Sensors & I/O
Technical Data
| Measurement range | 485 mm |
| Clearance distance | 360 mm |
| Field of view | 260 … 550 mm |
| Data points | 1456 |
| Laser wavelength | 405 nm |
| Storage temperature | -30 … +70 ℃ |
| IP rating | IP67 |
| Inputs | Time trigger, Differential encoder |
| Weight | 1.44 kg |
| Repeatability(z axis) | 6 μm |
| Scan rate | 270 … 5000 Hz |
| Ambient temperature | 0 … +50 ℃ |
| Communication protocol | ModbusTCP, PROFINET, ASCII, EtherNet/IP |
| Ambient light | Incandescent lamp: less than 10000 lux |
| Outputs | 2 digital outputs, 1 analog output |
| Housing material | Aluminium alloy |
| Dimensions | 44 × 99 × 284 mm |
| Temperature characteristic | ±0.01% of MR |
| Linearity(z axis) | ±0.05% of MR |
| Resolution(x axis) | 178.6 … 377.8 μm |
