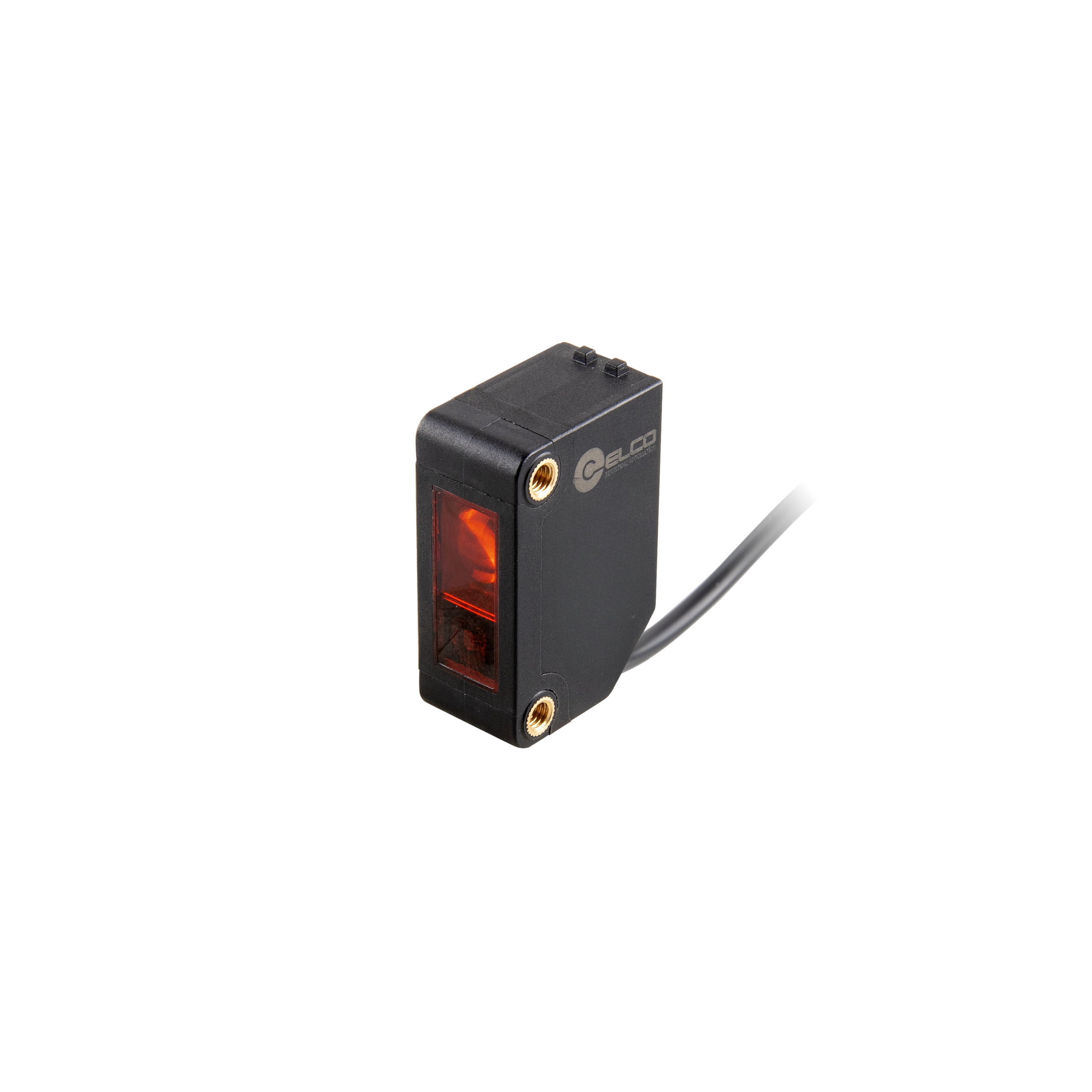

OS10U-KL300CB6 Photoelectric Sensor
Photoelectric Sensor, OS10U-Series, Diffused, Laser beam, Operating range 30-300 mm, Push-Pull, L.O / D.O, 10…30V DC, -20…50°C, Switching frequency 500 Hz, IP67, Cable 2 m
In Stock
$79.20
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | Trigonometric ranging diffused |
| Ambient temperature | -10 … +50 ℃ |
| Anti-ambient light | ≤ 5000 lux |
| Sensing range | 30 … 300 mm |
| Light source | Red laser / Class 1 |
| Spot size | 1 mm @ 300 mm |
| Output type | Push-pull |
| Output status | L.O / D.O |
| Switching frequency | 500 Hz |
| Supply voltage | 10 … 30 V DC |
| Connection type | 0.3 m cable + M8, 4-pin |
| IP rating | IP67 |
| Housing material | PC + PBT |
| Special characteristics | NPN / PNP adaptive |
| Connection | M8 Pigtail |
| Load current | ≤ 100 mA |
