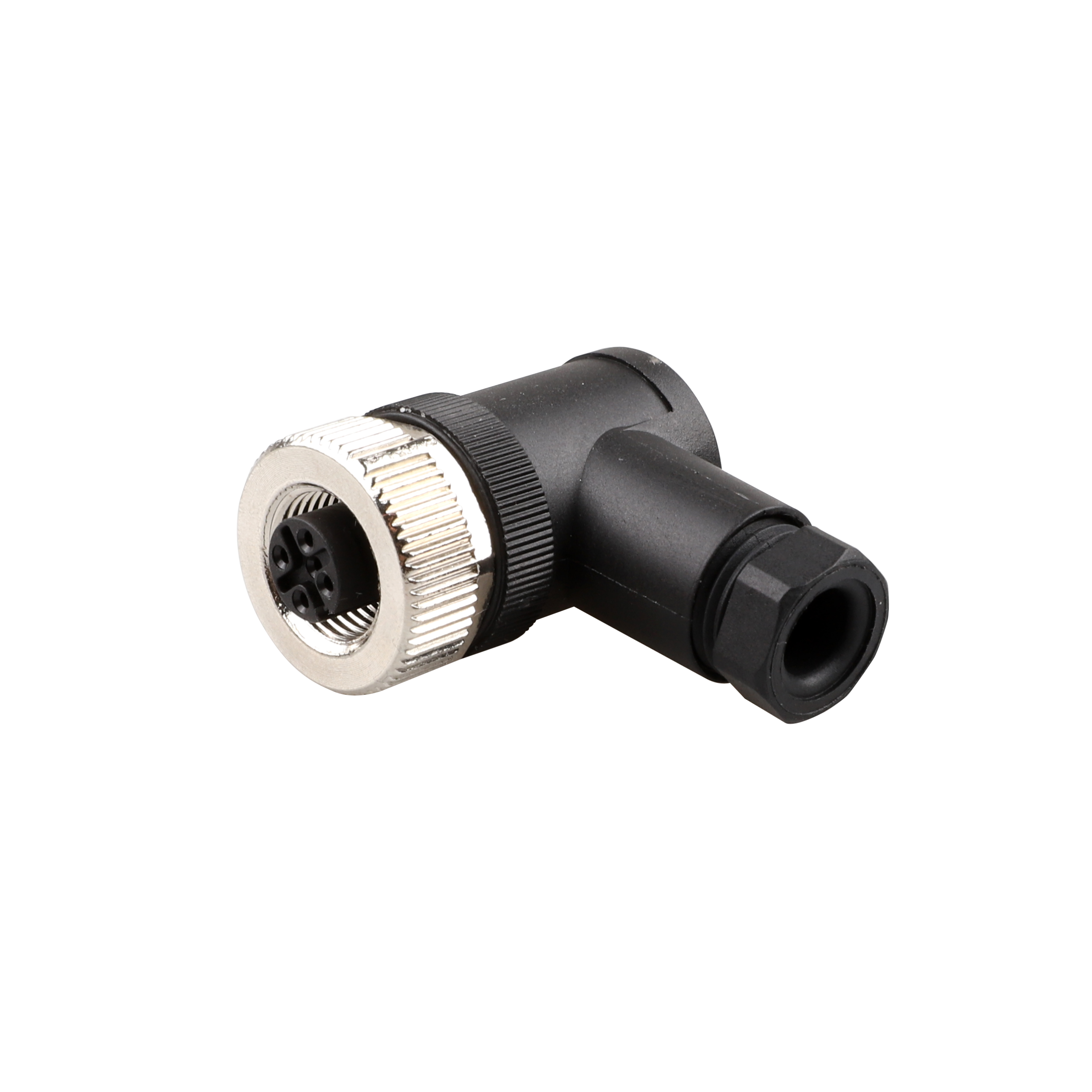

LSBO12.4-9/C(BU) Field-attachable Sensor-Actuator Connector
Elco Automation | LSBO12.4-9/C(BU)

LSBO12.4-9/C(BU) Field-attachable Sensor-Actuator Connector

Field-attachable Sensor-Actuator Connector, M12, A-code 4-pole, Angled Female, Screw Terminals Clamping, Range 6…8 mm

In Stock
$7.92 per unit

Applications: Sensors & I/O

Technical Data

Shape Angled
Gender Female
Rated current 4 A
Shielded/Unshielded No
Rated voltage 250 V AC/DC
Housing material Nylon
Cable diameter 6…8 mm
IP rating IP67
Coding A-code
Type M12
Number of contacts 4-pin
Product type Field-attachable Sensor-Actuator Connector
Termination type Screw connection

Documentation

Certificates & Compliance

  • Icon

    CE - ELCO_Field-attachable Connector_CE.pdf

    1 file(s) 1,003.71 KB
    Download

Datasheets

  • Icon

    Datasheet - DS_C_LSBO12.4_9_C(BU)_V1.1_EN.pdf

    1 file(s) 391.70 KB
    Download
  • Icon

    Datasheet - ELCO_现场接线式连接器资料_Datasheet_CN.pdf

    1 file(s) 1.31 MB
    Download
