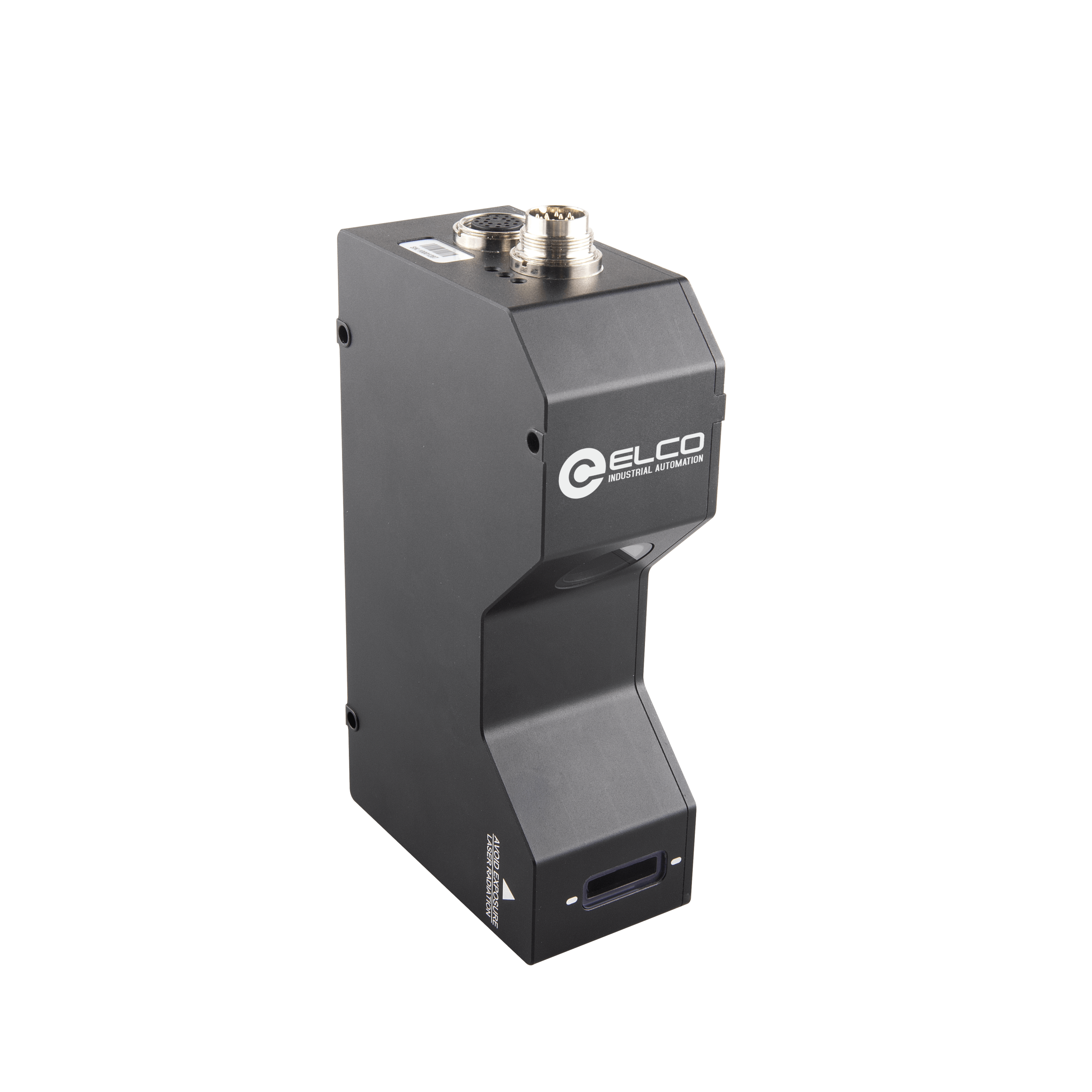

LVM2420 3D Laser profile sensor
3D Laser profile sensor, LVM24 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 52.5 … 71 mm, FOV 28 … 32.5 mm,Data points 3200, Scan rate 1500 … 20000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 … 48 VDC, 0…50 °C, IP67
In Stock
$16,615.70
per unit
Applications: Sensors & I/O
Technical Data
| Data points | 3200 |
| Weight | 0.67 kg |
| Clearance distance | 52.5 mm |
| Measurement range | 18.5 mm |
| Field of view | 28.0 … 32.5 mm |
| Laser wavelength | 405 nm |
| Scan rate | 1500 … 20000 Hz |
| Resolution(x axis) | 8.8 … 10.2 μm |
| Repeatability(z axis) | 0.2 μm |
| Linearity(z axis) | ±0.02% of MR |
| Dimensions | 48 × 87.5 × 153.5 mm |
| Housing material | Aluminium alloy |
| Temperature characteristic | ±0.01% of MR |
| Inputs | Time trigger, Differential encoder |
| Outputs | 2 digital outputs, 1 analog output |
| Communication protocol | ModbusTCP, PROFINET, ASCII, EtherNet/IP |
| IP rating | IP67 |
| Ambient light | Incandescent lamp: less than 10000 lux |
| Ambient temperature | 0 … +50 ℃ |
| Storage temperature | -30 … +70 ℃ |
