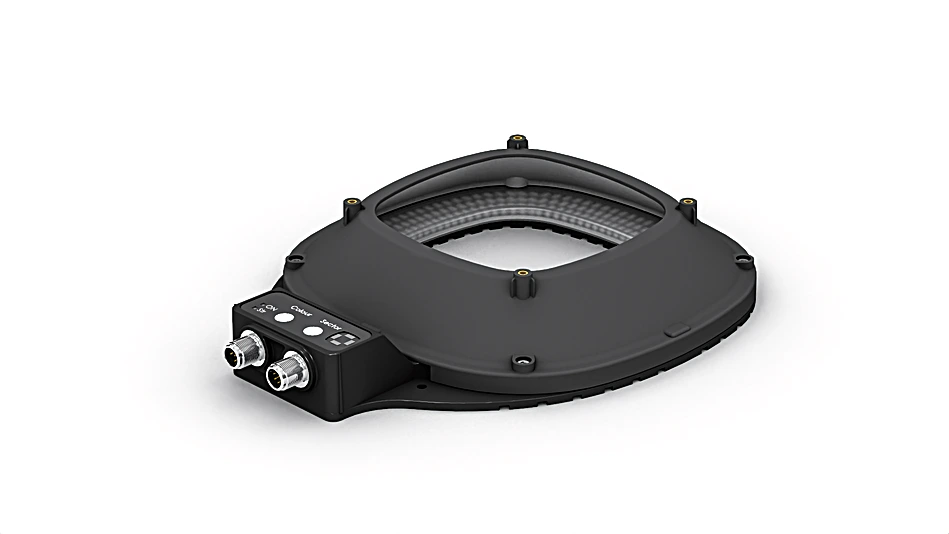

LMLX201 Low Angle Light Red-cyan light, 130 mm
Low Angle Light
In Stock
$1,773.69
per unit
Applications: Machine Vision
Description
The LMLX lights are a series of low angle lights. In this case, “low angle” means that the light enters with an angle of incidence of 45°. This light is therefore perfect for inspecting edges and scratches on all types of surfaces. The light can be operated in continuous mode or synchronized with the machine vision camera in strobe mode or strobe mode with increased intensity (OverDrive).
Features at a Glance
- No external control required
- 4 sectors selectable
- Bicolor
- Quick and easy replacement of accessories
- OverDrive
Technical Data
Optical Data
| Light Source | Red-cyan light |
| Wavelength | 625 … 505 nm |
| Red light output | 70 W/m² |
| Cyan light output | 46.2 W/m² |
| Measuring point distance | 20 mm |
Environmental conditions
| Temperature Range | -10 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Power | 11.04 W |
| Peak power | 82.08 W |
| Current Consumption Continuous Mode (Ub = 24 V) | 0.46 A |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | 3.42 A |
| Flash duration (max.) | 2 ms |
| Duty cycle (max.) | < 0,1 |
| Rise time | 15 µs |
| Fall time | 10 µs |
| Input signal | PNP/NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Dimming | 0….10 V ≙ 100…30% |
| OverDrive | yes |
Mechanical Data
| Housing Material | Aluminum, anodised Plastic, ABS Plastic, PMMA |
| Degree of Protection | IP65 |
| UL Enclosure Type | 1 |
| Optic Cover | Plastic, PMMA |
| Connection | M12 × 1; 5-pin |
| Max. cable lenght | 40 m |
| Camera aperture inner diameter | 130 mm |
| Weight | 673 g |
Function
| Operating modes | Continuous, strobe overdrive |
Standards and certificates
     |

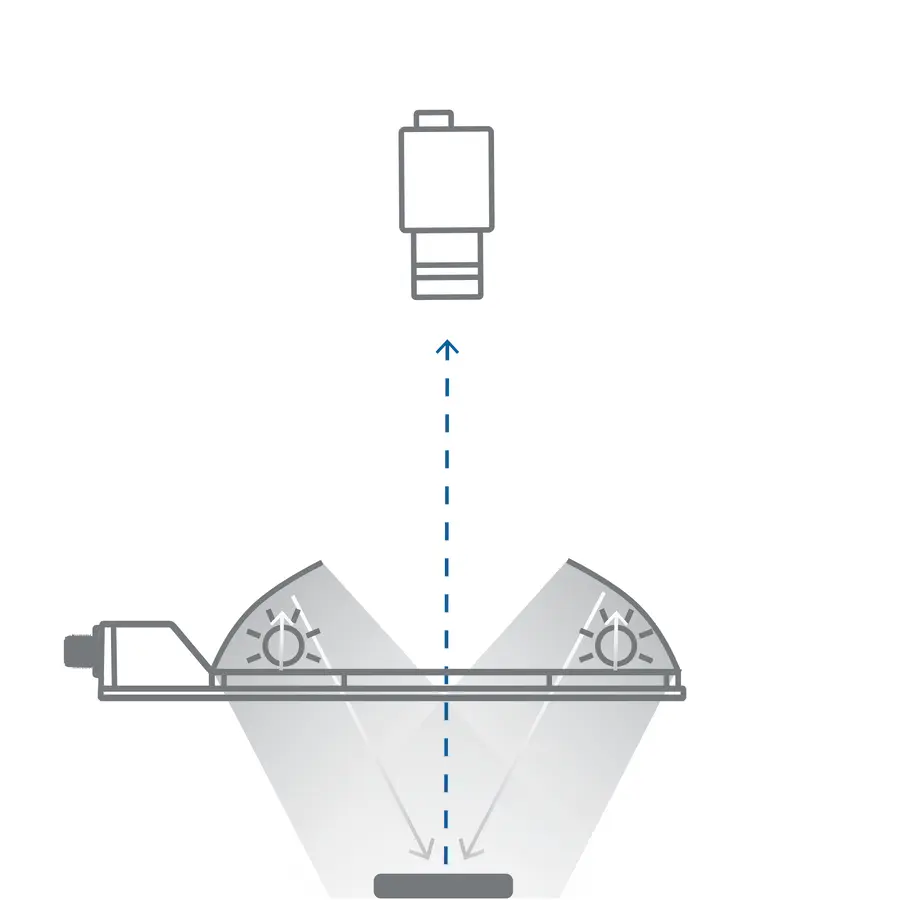

Illumination methods
|
|
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
9b = Strobe Mode Indicator 0c = sector selection indicator 7b = Color Selection Button 8b = Sector Selection Button |

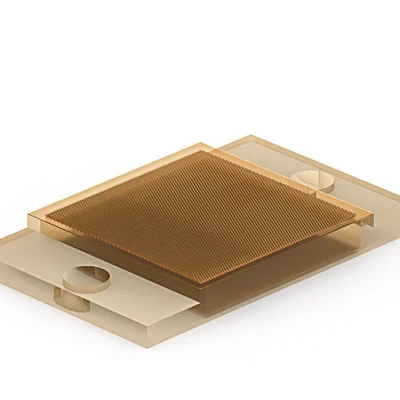

Complementary Products
|
