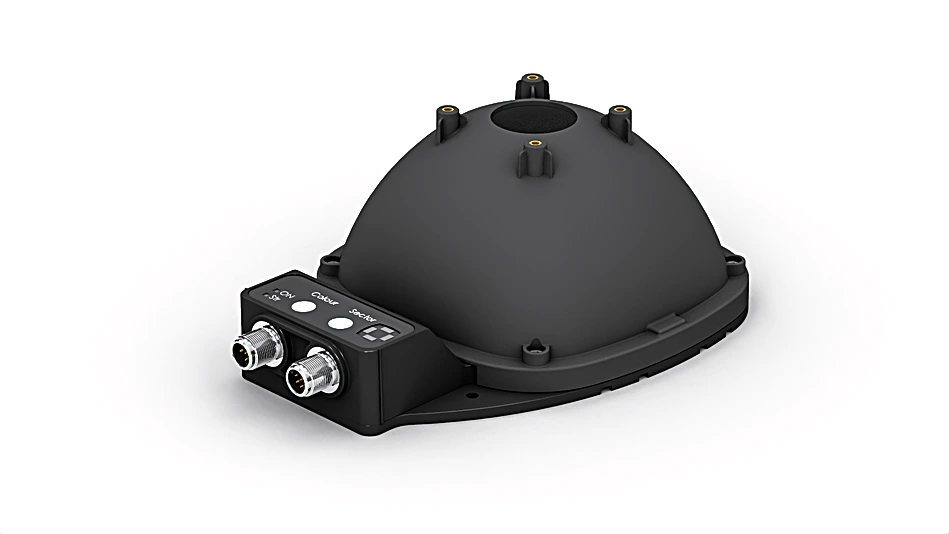

LMDX102 Dome Light White infrared light, 80 mm
Dome Light
In Stock
$1,372.00
per unit
Applications: Machine Vision
Description
wenglor LMDX series dome lights are particularly suited for homogeneous illumination of glossy parts and demanding surfaces, such as bent metal. The dome is designed to shield the environment and efficiently capture all the light emitted by the ring-shaped light source. This makes it the ideal product for applications with exposure times as low as 100 μs. The product can be operated in continuous mode or synchronized with the machine vision camera in strobe mode with increased intensity (OverDrive).
Features at a Glance
- No external control required
- 4 sectors selectable
- Bicolor
- Quick and easy replacement of accessories
- OverDrive
Technical Data
Optical Data
| Light Source | White-infrared light |
| Color temperature | 5,000 K |
| Wavelength | 860 nm |
| Risk Group (EN 62471) | 1 |
| White light output | 90,200 Lux |
| Infrared light output | 48 W/m² |
| Measuring point distance | 20 mm |
Environmental conditions
| Temperature Range | -10 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Power | 10.08 W |
| Peak power | 42 W |
| Current Consumption Continuous Mode (Ub = 24 V) | 0.42 A |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | 1.75 A |
| Flash duration (max.) | 2 ms |
| Duty cycle (max.) | < 0,1 |
| Rise time | 15 µs |
| Fall time | 10 µs |
| Input signal | PNP/NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Dimming | 0….10 V ≙ 100…30% |
| OverDrive | yes |
Mechanical Data
| Housing Material | Aluminum, anodised Plastic, ABS Plastic, PMMA |
| Degree of Protection | IP65 |
| UL Enclosure Type | 1 |
| Optic Cover | Plastic, PMMA |
| Connection | M12 × 1; 5-pin |
| Max. cable lenght | 40 m |
| Camera aperture inner diameter | 80 mm |
| Weight | 423 g |
Function
| Operating modes | Continuous, strobe overdrive |
Standards and certificates
     |
Illumination methods
|
|
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
9b = Strobe Mode Indicator 0c = sector selection indicator 7b = Color Selection Button 8b = Sector Selection Button |
