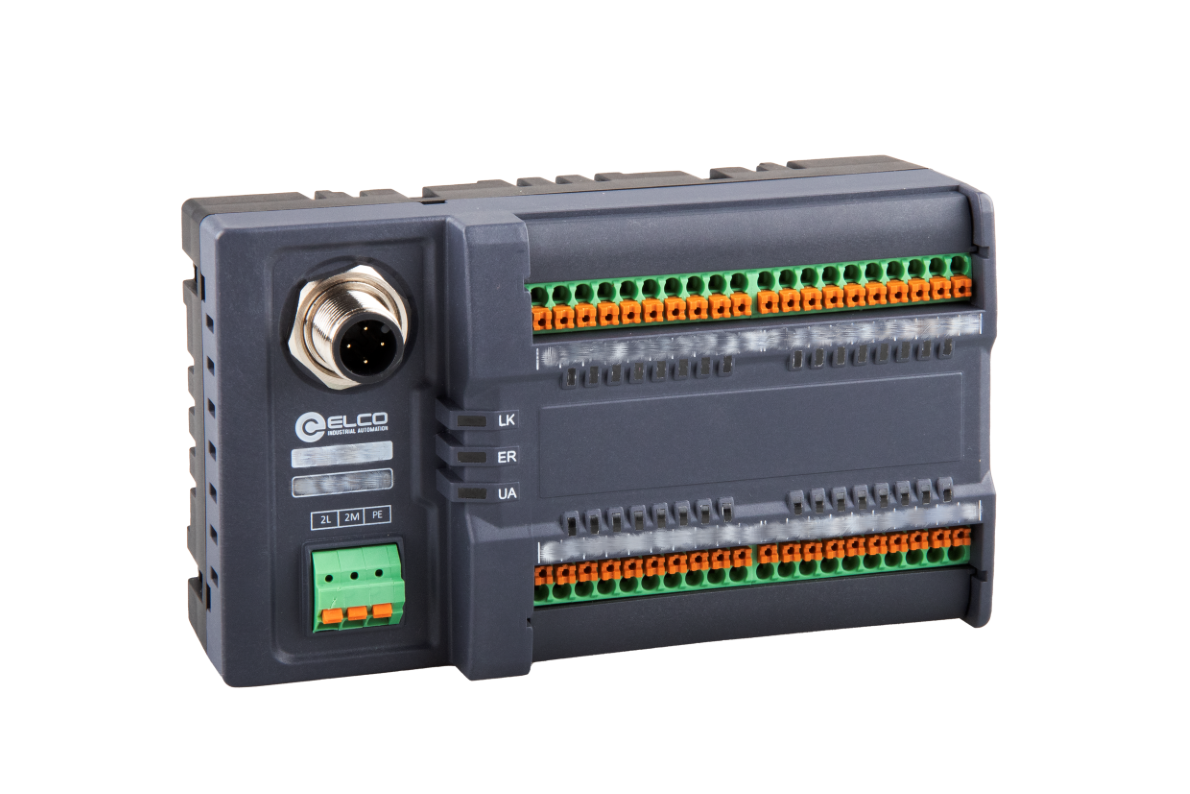

LKHA-08UA-QC IO-Link Sensor Hub
IO-Link Sensor Hub, V1.1.3, Class-A, IP 20 module for DIN-Rail mounting, 8-channel 16 bits resolution analog input/output, 8 AI/AO, M12 A-code supply interface, Without equipotential terminal, 24 V DC
In Stock
$301.07
per unit
Applications: HMI & Controls, Sensors & I/O
Technical Data
| Communication protocol | IO-Link |
| IP rating | IP20 |
| Housing material | PPE + PS |
| Power connection | Terminal |
| Fieldbus connection | 1 x M12 A-Code |
| Signal connection | Terminal |
| Input type | Voltage, Current, TC, RTD |
| Output type | Voltage, Current |
| Dimensions | 91 x 70 x 39 mm |
| Ambient temperature | -25 … +70 °C |
| Storage temperature | -40 … +85 °C |
| Certificate | CE, UL |
| Signal type | Analog I/O |
| Power supply | 18 … 30 V DC |
| Number of channels | 8 AI/AO |
