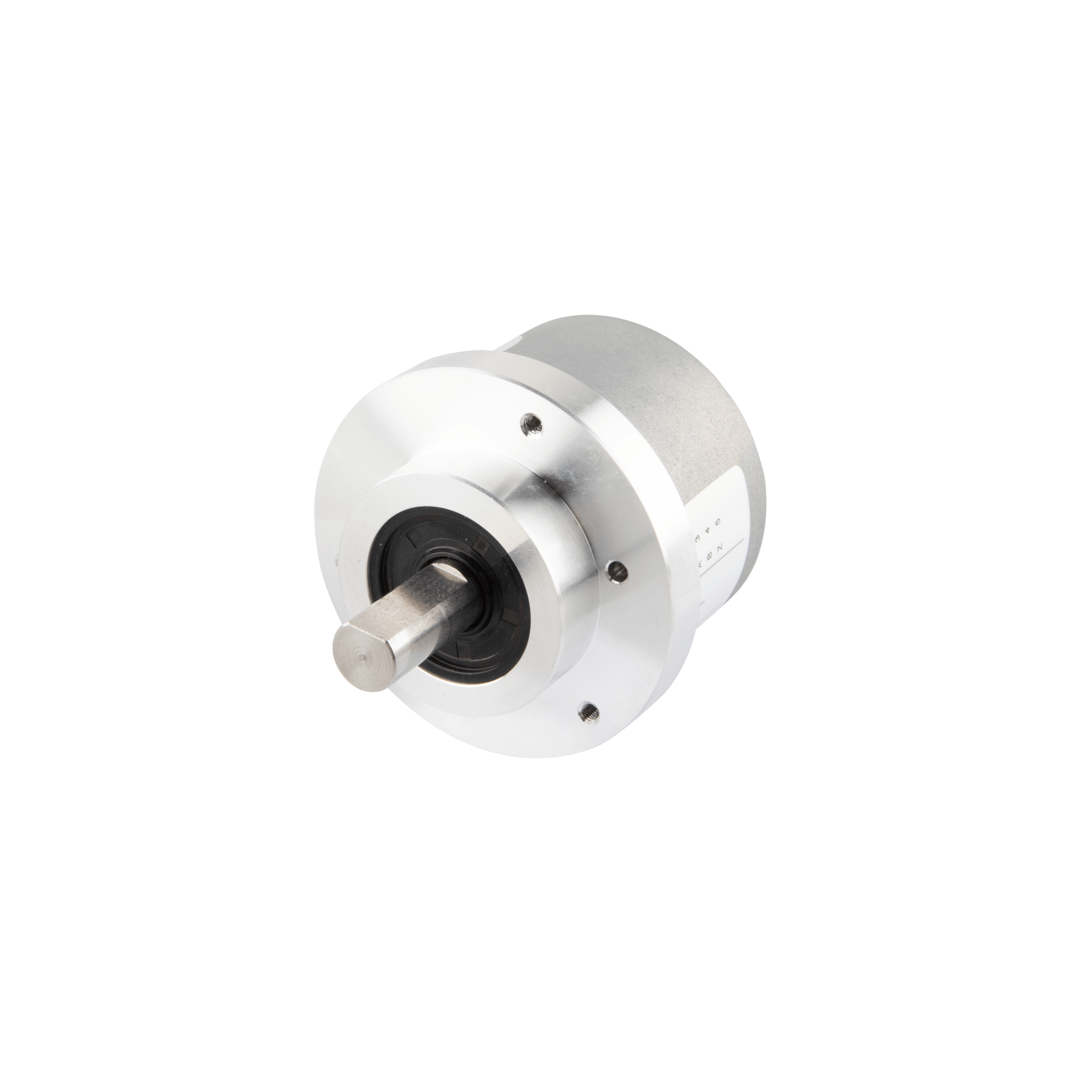

EV50C10-L5PA-8192M8 Shaft incremental encoder
Shaft incremental encoder, EV50 Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 5 VDC, Output TTL(with inverted signal), Axial, M12 8Pin, Resoluteion 8192
In Stock
$317.47
per unit
Applications: Motion Control
Technical Data
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -40 … +85 °C |
| Weight | 400 g |
| Model | Incremental encoder |
| Housing material | Al-alloy |
| Housing diameter | 50 mm |
| IP rating | IP65 |
| Flange type | Clamping flange |
| Shaft type | Solid shaft |
| Shaft diameter | 10 mm |
| Max load capacity of the shaft | 40 N Axial80 N Radial |
| Max Speed(rpm) | 6000 rpm |
| Moment of inertia | 1.9 x 10-6 kgm2 |
| Starting torque | ＜ 0.01 N·m |
| Resolution | 8192 ppr |
| Supply voltage | 5 V DC |
| Output logic | TTL |
| Permissible load(channel) | ±20 mA |
| Pulse frequency | 300 kHz |
| Connection type | M12 8-pin Male |
