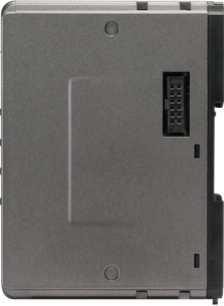

iR-ETN
Remote Communication Module
In Stock
$179.00
per unit
Applications: HMI & Controls, Sensors & I/O
Description
- Supports multiple communication protocols
- Flexible connection options for diverse Digital and Analog I/O modules
- Adaptable to various industrial requirements
Technical Data
| No. of Bus Terminals | Depends on Power Consumption |
| Digital Input Point | Max. 256 |
| Digital Output Point | Max. 128 |
| Analog Input Channel | Max. 64 |
| Analog Output Channel | Max. 64 |
| ENET ACK (Green) | Device Status Indicator |
| ENET ERR (Red) | Device Error Indicator |
| L.V (Red) | Low Voltage Status Indicator |
| IO RUN (Green) | Module Status Indicator |
| IO ERR (Red) | Module Error Indicator |
| No. of Ports | 2 |
| Data Transfer Rate | 10/100 Mbps |
| Data Transfer Medium | 4 x 2 twisted pair copper cable; category 3 (10 Mbps), category 5 (100 Mbps) |
| Distance Between Stations | 100 m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler |
| Protocol | Modbus TCP/IP Server, EtherNet/IP adapter |
| Max. Number of TCP/IP Connections | 8 connections |
| Topology | line or star wiring |
| Isolation | Network to Logic Isolation : Yes |
| Power Supply | 24 VDC (‐15%/+20%) |
| Power Dissipation | Nominal 100mA＠24VDC |
| Current for Internal Bus | Max. 2A＠5VDC |
| Current Consumption | 220mA＠5VDC |
| Electrical Isolation | Yes |
| Back-up Fuse | ≤ 1.6A Self-recovery |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions WxHxD | 27 x 109 x 81 mm |
| Weight | Approx. 0.15 kg |
| Mount | 35mm DIN rail mounting |
| Protection Structure | IP20 |
| Storage Temperature | ‐20° ~ 70°C (‐4° ~ 158°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non‐condensing) |
| Altitude | Below 3,000 meters (70.1kPa) |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | cULus Listed |
