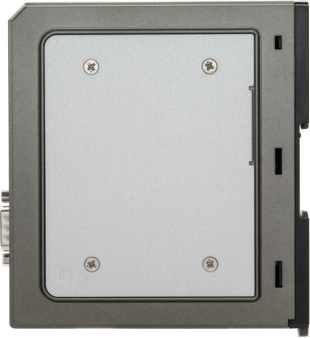

cMT-FHDX-820 with CODESYS
HMI with external touchscreen
In Stock
$829.00
per unit
Applications: HMI & Controls
Description
- Full HD 1080p High Resolution HDMITM Output
- Quad-core CPU with High Performance dedicated 3D Processor
- Plays video in high resolution, video decode 1080p H.264
- Supports customized resolution for 16:9 / 4:3 LCD monitor
- Compact Design and DIN-rail Mountable
- Built- in 4GB Flash Memory
- One USB Host Port
- Gigabit Ethernet Port
- Supports MPI 187.5K
- Built-in Power Isolator
Technical Data
| Flash | 4 GB |
| RAM | 1 GB |
| CPU | Quad-core RISC |
| Memory Card Type | microSD x 1 |
| USB Host | USB 2.0 x 1 |
| Ethernet Port | LAN 1: 10/100/1000 Base-T x 1nLAN 2: 10/100 Base-T x 1 |
| COM Port | COM1: RS-232nnCOM2: RS-485 2W/4WnnCOM3: RS-485 2W |
| HDMI Output | Customizable (max. resolution 1920 x 1080) |
| Recommended Resolutions(Please use these recommended screen resolutions to avoid compatibility issues.) | 720x480n720x576n800x600n1024x768n1280x720n1920x1080 |
| WiFi | N/A |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | HDMI Audio Output |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 850mA@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Enclosure | Plastic |
| Dimensions WxHxD | 29.8 x 130 x 115 mm |
| Weight | Approx. 0.24 kg |
| Mount | 35mm DIN rail mounting |
| PCB Coating | Yes |
| Protection Structure | IP20 |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | cULus Listed |
| Weincloud | EasyAccess 2.0 (Optional)nDashboard (Optional) |
| CODESYS | Optional |
