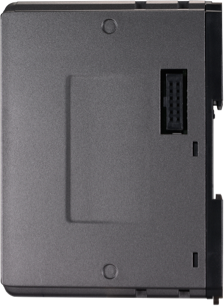

iR-DM16-P
Remote Communication Module
In Stock
$139.00
per unit
Applications: HMI & Controls, Sensors & I/O
Description
- Supports multiple communication protocols
- Flexible connection options for diverse Digital and Analog I/O modules
- Adaptable to various industrial requirements
Technical Data
| Input Logic | Sink or Source |
| Number of Inputs | 8 |
| Current Consumption | 130mA@5VDC |
| High Level Input Voltage | 15~28VDC |
| Low Level Input Voltage | 0~5VDC |
| Response Time | OFF->ON: 5 msnON->OFF: 1 ms |
| Input Impedance | 5.6 KΩ |
| Indicators | Red LED Input State |
| Isolation | Optical Isolation |
| Output Logic | Source |
| Number of Outputs | 8 |
| Current Consumption | 130mA@5VDC |
| Output Voltage | 11~28VDC |
| Output Current | 0.5A per channel (Max 4A) |
| Response Time | OFF->ON: 300μsnON->OFF: 300μs |
| Isolation | Optical Isolation |
| PCB Coating | No |
| Enclosure | Plastic |
| Dimensions WxHxD | 27 x 109 x 81 mm |
| Weight | Approx. 0.12 kg |
| Mount | 35mm DIN rail mounting |
| Protection Structure | IP20 |
| Storage Temperature | ‐20° ~ 70°C (‐4° ~ 158°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non‐condensing) |
| Altitude | Below 3,000 meters (70.1kPa) |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Cross-section | AWG 24‐16 |
| CE | CE marked |
| UL | cULus Listed |
