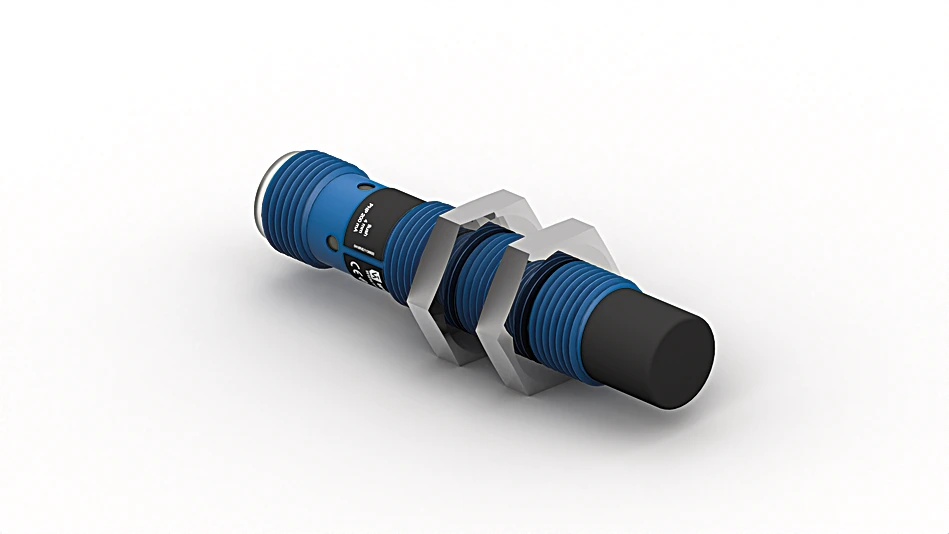

I12A002 Inductive Sensor Welding Field Resistant with Correction Factor 1
Inductive Sensor
In Stock
$94.70
per unit
Applications: Sensors & I/O
Description
Welding field resistant inductive sensors with correction factor 1 offer a unique combination of technical performance features: increased switching distances for reliable object detection, high switching frequencies for applications with high process speeds and an extended temperature range for use under various ambient conditions. A switching status LED for diagnosis functions reduces system downtime. In order to simplify integration, all housing designs are available in flush or non-flush mounting variants.
Features at a Glance
- Extended temperature range
- Greatest possible switching distances with correction factor 1
- Very good magnetic and electromagnetic immunity
- Very high switching frequency
Technical Data
Inductive Data
| Switching Distance | 10 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al | 1,04 /1,05/1,05 |
| Mounting | Non-flush |
| Mounting A/B/C/D in mm | 12/35/30/15 |
| Switching Hysteresis | < 15 % |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Switching Frequency | 4,200 Hz |
| Temperature Drift (-25 °C < Tu < 60 °C) | 10 % |
| Temperature Drift (Tu < -25 °C, Tu > 60 °C) | 20 % |
| Temperature Range | -40 … 80 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Resistant to Magnetic Fields | 200 mT |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | II |
| Protective Insulation, Rated Voltage | 50 V |
Mechanical Data
| Housing Material | PTFE Brass, nickel-plated |
| Sensing face | Plastic, PBT |
| Welding Field Resistant | yes |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 26 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,193.68 a |
General Data
| Packaging unit | 1 Piece |
Function
| Error Indicator | yes |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
Standards and certificates
     |
Connection Diagram
 |
