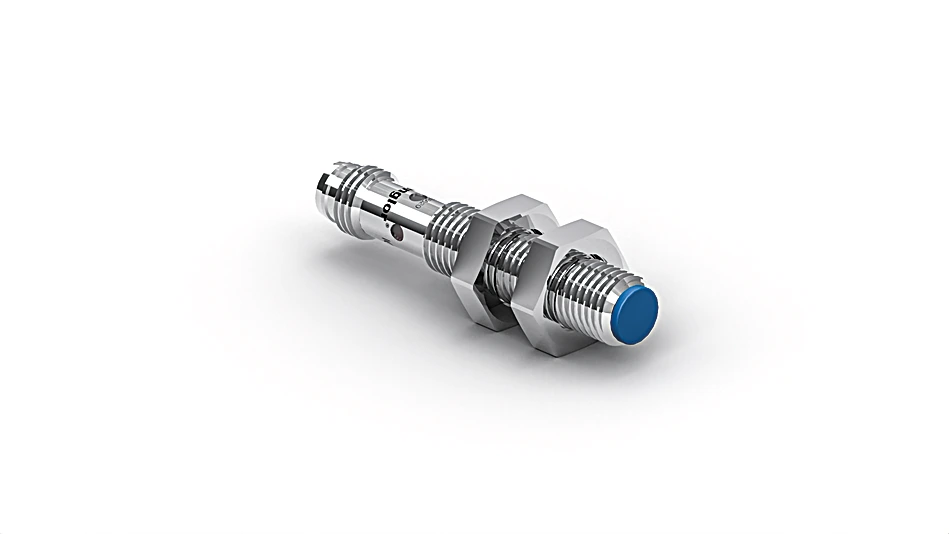

I08H027 Inductive Sensor with Increased Switching Distance
Inductive Sensor
In Stock
$81.20
per unit
Applications: Sensors & I/O
Description
Inductive Sensors with increased switching distances are distinguished by rugged design, easy installation and reliable measured values. The large range makes additional types of sensor superfluous because they can also be used to implement special applications. In addition to error-free operation of several sensors in a very small space, the new generation also provides the possibility of detecting system errors before it’s too late thanks to ASIC und wenglor weproTec.
Features at a Glance
- Increased switching distance
- Minimal mounting clearance thanks to wenglor weproTec
- Innovative ASIC circuit technology
- Integrated error display
Technical Data
Inductive Data
| Switching Distance | 2.5 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al | 1,07/0,60/0,56 |
| Mounting | semi-flush |
| Mounting A/B/C/D in mm | 8/8/7,5/3 |
| Mounting B1 in mm | 0…3 |
| Switching Hysteresis | < 10 % |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 6 mA |
| Switching Frequency | 750 Hz |
| Temperature Drift | < 10 % |
| Temperature Range | -40 … 80 °C |
| Switching Output Voltage Drop | < 1 V |
| Switching Output/Switching Current | 150 mA |
| Residual Current Switching Output | < 100 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Brass, nickel-plated |
| Sensing face | Plastic, PBT |
| Degree of Protection | IP67 |
| Connection | M8 × 1; 3-pin |
| Weight | 6 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 3,706.54 a |
General Data
| Scope of delivery | 1 × MUTTER-M8-E001 hex nut 1 × sensor |
| Packaging unit | 1 Piece |
Function
| Error Indicator | yes |
Output
| PNP NO | yes |
Standards and certificates
     |

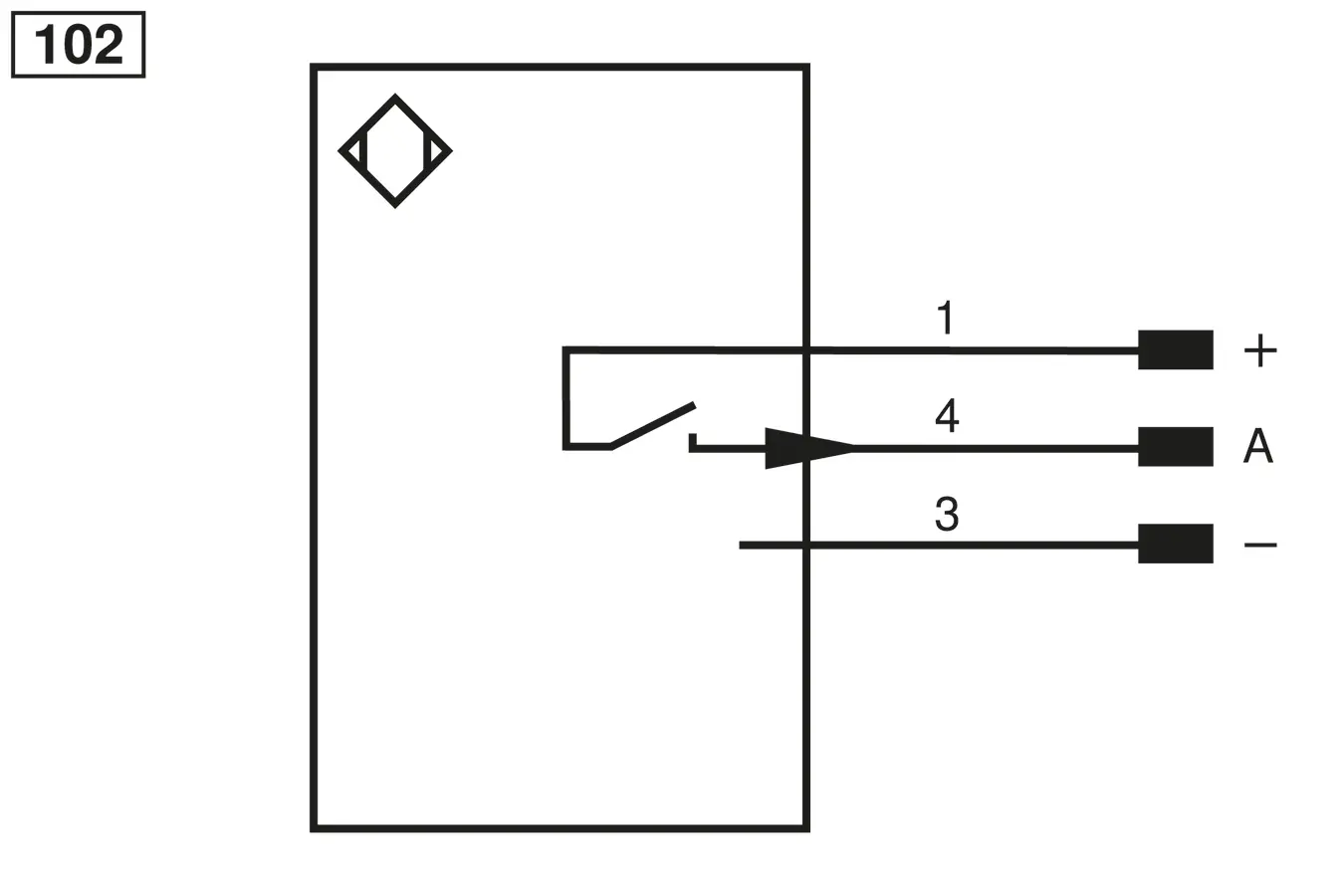

Connection Diagram
 |

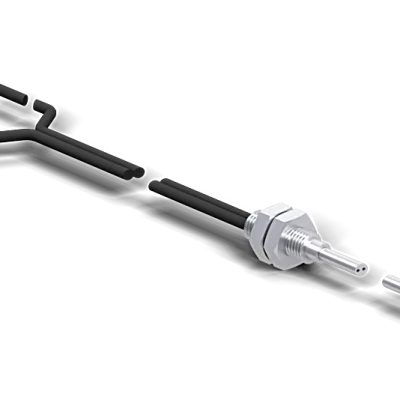

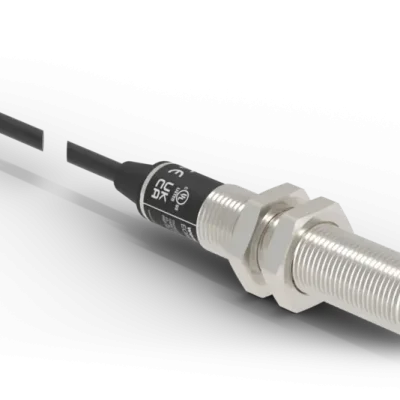

Complementary Products
|
