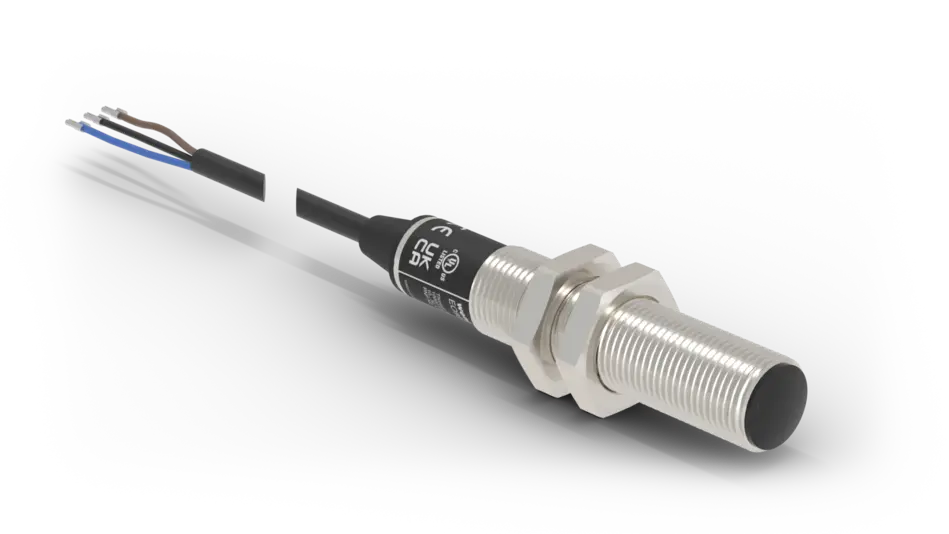

EO98VB-U Through-Beam Sensor
Through-Beam Sensor
In Stock
$212.00
per unit
Applications: Sensors & I/O
Description
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Ample performance reserves
- Infrared light
- Insensitive to contamination
Technical Data
Optical Data
| Range | 10,000 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 8 ° |
Electrical Data
| Sensor Type | Receiver |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 250 Hz |
| Response Time | 2 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -10 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | Cable; 3-wire |
| Cable length (L) | 2 m |
| Cable Jacket Material | Plastic, PUR |
| Weight | 79 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 4,279.64 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M12-E001 hex nut 1 × sensor |
Output
| PNP NO | yes |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
01 = Switching Status Indicator |
