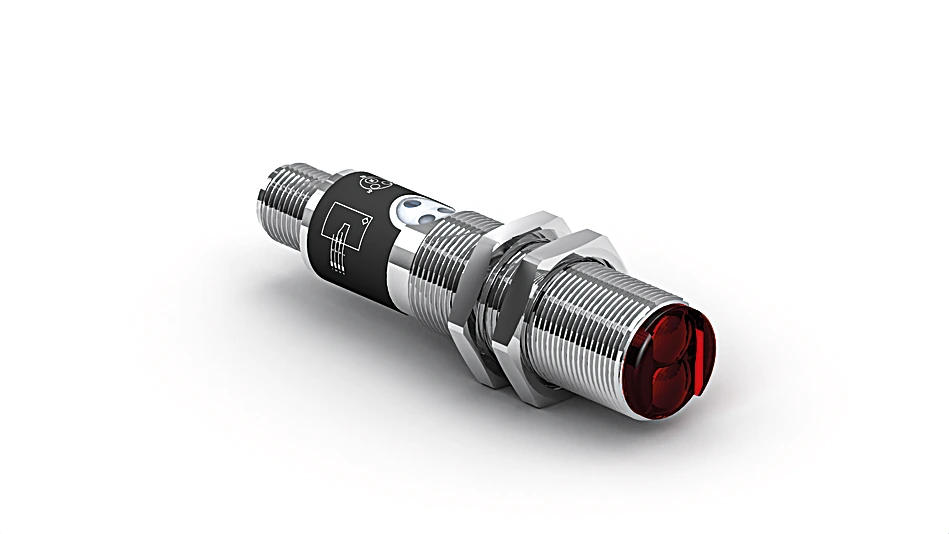

HD11PA3S740 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$746.31
per unit
Applications: Sensors & I/O
Description
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
Features at a Glance
- Adjustable switching distance
- Electronic background suppression
- Red light
- Working range adjusted to 60 mm on Kodak white paper
Technical Data
Optical Data
| Range | 60 mm |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 600 Hz |
| Response Time | 833 µs |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Stainless steel, V2A (1.4305 / 303) |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 36 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Table 1
| Detection Range | 60 mm |
| Light Spot Diameter | 2,5 mm |
Connection Diagram
 |
Ctrl. Panel
|
02 = Contamination Warning
01 = Switching Status Indicator |
