Wenglor | Z89Q004

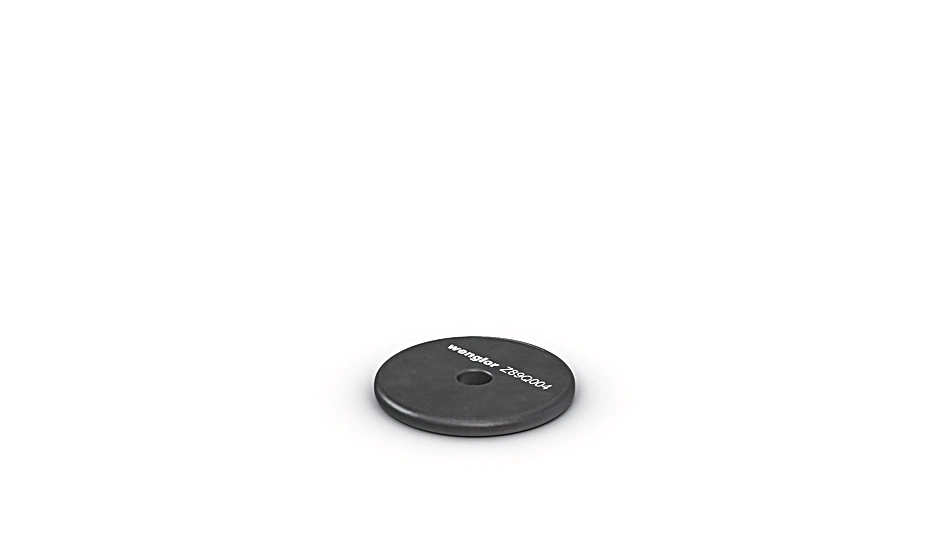

Z89Q004 RFID Transponder

RFID Transponder

In Stock
$21.69 per unit

Description

These passive RFID transponders enable contactless data processing with an RFID reader without the need for a separate power supply. The power supply is provided via the connection with an RFID reader. The RFID chip in the transponder has a globally unique identification number that can be read but not overwritten. With a frequency band of 13.56 MHz, RFID transponders offer a reliable identification solution for short-range applications.

Features at a Glance

  • Frequency band 13.56 MHz
  • High degree of protection
  • Resistant to high temperature
  • Passive data carrier
  • Rugged housing design

Technical Data

RFID data

Storage Capacity 316 Bytes
Configuration memory 4 Bytes
Storage organization 80 × 4 Bytes
UID serial number 8 Bytes
Frequency band 13.56 MHz
Max. writing cycles 100000
RFID standard ISO/IEC 15693

Mechanical Data

Installation Type On metal-free materials
Material Plastic, PPA
Degree of Protection IP68
IP69K
Temperature Range -25 … 80 °C
Storage temperature -40 … 90 °C
Weight 3 g

General Data

Packaging unit 1 Piece
