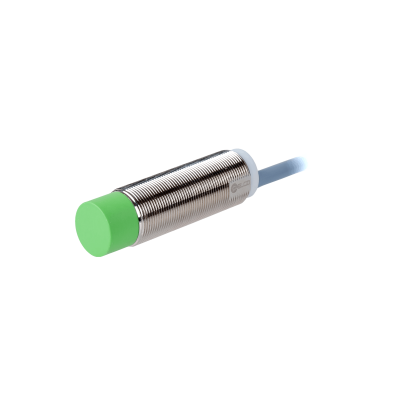

FI5-M18S-BP6L Inductive Sensor
Inductive Sensor, Short threaded cylindrical housing M18, short size, Switching distance 5 mm, Flush, IP67, -25…70 °C, PNP NO/NC, Cable 2 m
In Stock
$27.79
per unit
Applications: Sensors & I/O
Technical Data
| Switching frequency | 800 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Supply voltage | 10 … 30 V DC |
| Sensing range | 5 mm |
| Sensing surface material | PBT |
| Output status | NO + NC |
| Load current | ≤ 200 mA |
| Output type | PNP |
| External dimensions | M18 x 1 |
| Mounting | Flush |
| Product size | M18 x 43 mm |
| Housing material | Nickel-plated brass |
| Connection | Cable |
| Cable length | 2 m |
| IP rating | IP67 |
| Cable type | PVC |
