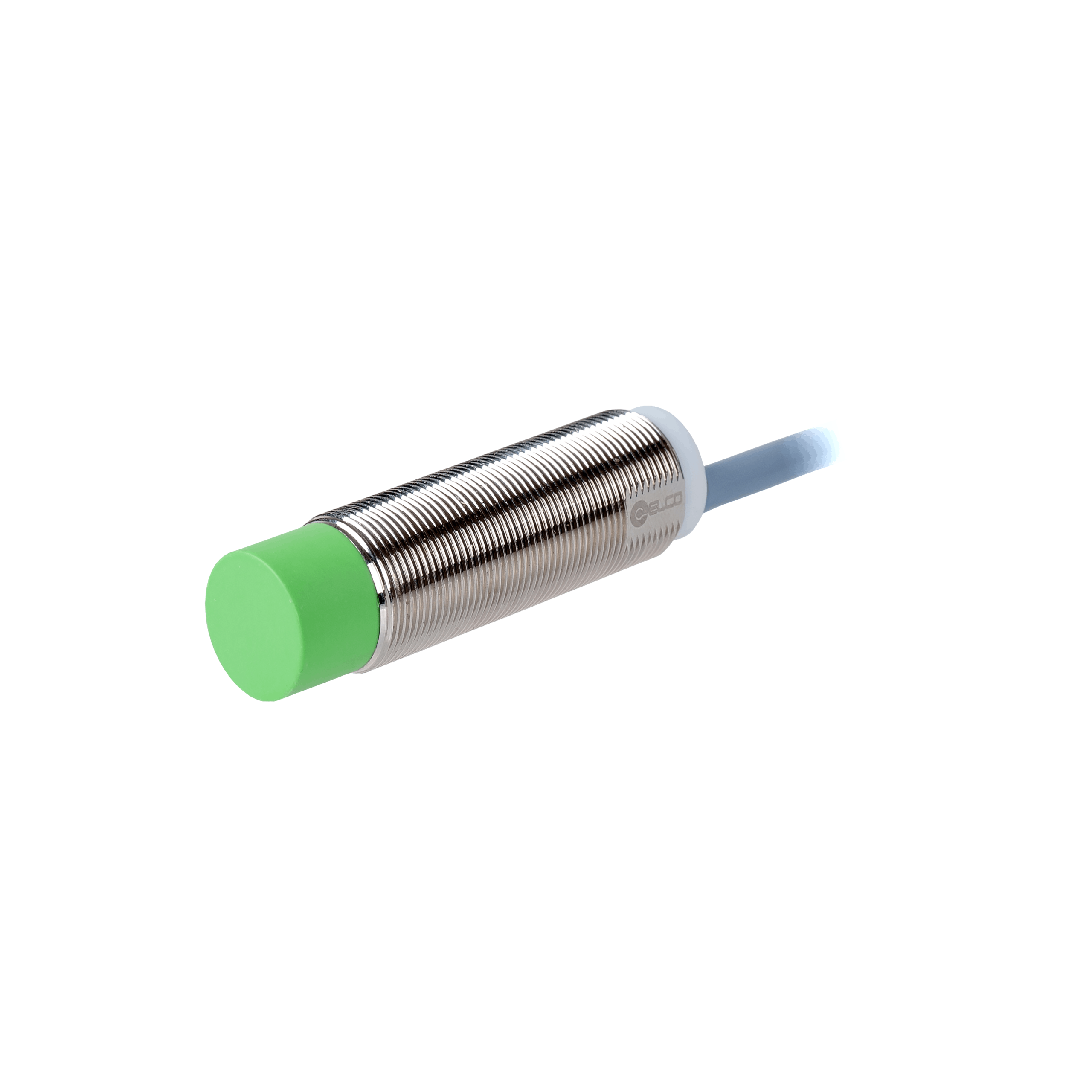

NI16-G18-CA41L Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M18, Switching distance 16 mm, Non-flush, IP68, -30…85 °C, 2-wire AC/DC, Cable 2 m
In Stock
$29.18
per unit
Applications: Sensors & I/O
Technical Data
| Connection | Cable |
| Cable type | PVC |
| Ambient temperature | -30 … +85 ℃ |
| Sensing surface material | PBT |
| Switching frequency | 40 Hz |
| Supply voltage | 10 … 30 V DC |
| Sensing range | 16 mm |
| Housing material | Nickel-plated brass |
| Load current | ≤ 200 mA |
| Output status | NC |
| Output type | DC / AC |
| External dimensions | M18 x 1 |
| Mounting | Non-flush |
| Product size | M18 x 71 mm |
| Cable length | 2 m |
| IP rating | IP68 |
