Description

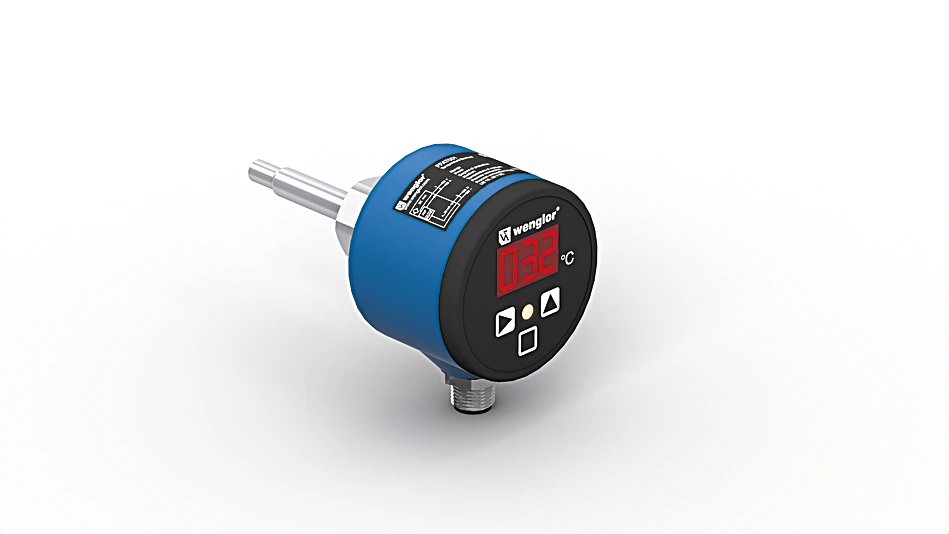

UniTemp temperature sensors measure the temperature of liquid or gaseous media and facilitate the temperature monitoring of processes. This product has been discontinued. Click here to display similar products.
Features at a Glance
- Simple operation via the display
- Highly visible output indicator
- Temperature range: 0…200°C available
Technical Data
Sensor-specific data
| Temperature Measurement Range | 0 … 140 °C |
| Setting Range | 2 … 139 °C |
| Medium | Liquids, gases |
| Measuring error | ± 1 °C |
| Resolution | 1 °C |
| Switching Hysteresis | 2 °C |
| Response Time | 2 … 4 s |
Environmental conditions
| Temperature of medium | 0 … 140 °C |
| Ambient temperature | -20 … 80 °C |
| Pressure Resistance | 60 bar |
| EMC | DIN EN 61326-2-3 |
| Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 20 g (10…2000 Hz) |
Electrical Data
| Supply Voltage | 16 … 32 V DC |
| Current Consumption (Ub = 24 V) | 60 mA |
| Number of Switching Outputs | 1 |
| Analog Output | 4…20 mA |
| Signal source | Temperature |
| Current Output Load Resistance | < 500 Ohm |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Menu |
| Housing Material | Plastic, PBT Plastic, PC |
| Material Control Panel | Polyester |
| Material in contact with media | Stainless steel, V4A (1.4404 / 316L) Stainless steel, V4A (1.4435/316L) Rubber, FKM |
| Degree of Protection | IP67 * |
| Connection | M12 × 1; 5-pin |
| Process Connection | Sealing cone M18 × 1,5 |
| Process Connection Length (PCL) | 64 mm |
| Probe Length (PL) | 44 mm |
| Weight | 288 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 766.91 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| Analog Output | yes |
| Relay -NO | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| Other parameters | Switching point |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
60 = display 20 = Enter key 22 = Up key 99 = Right button |
