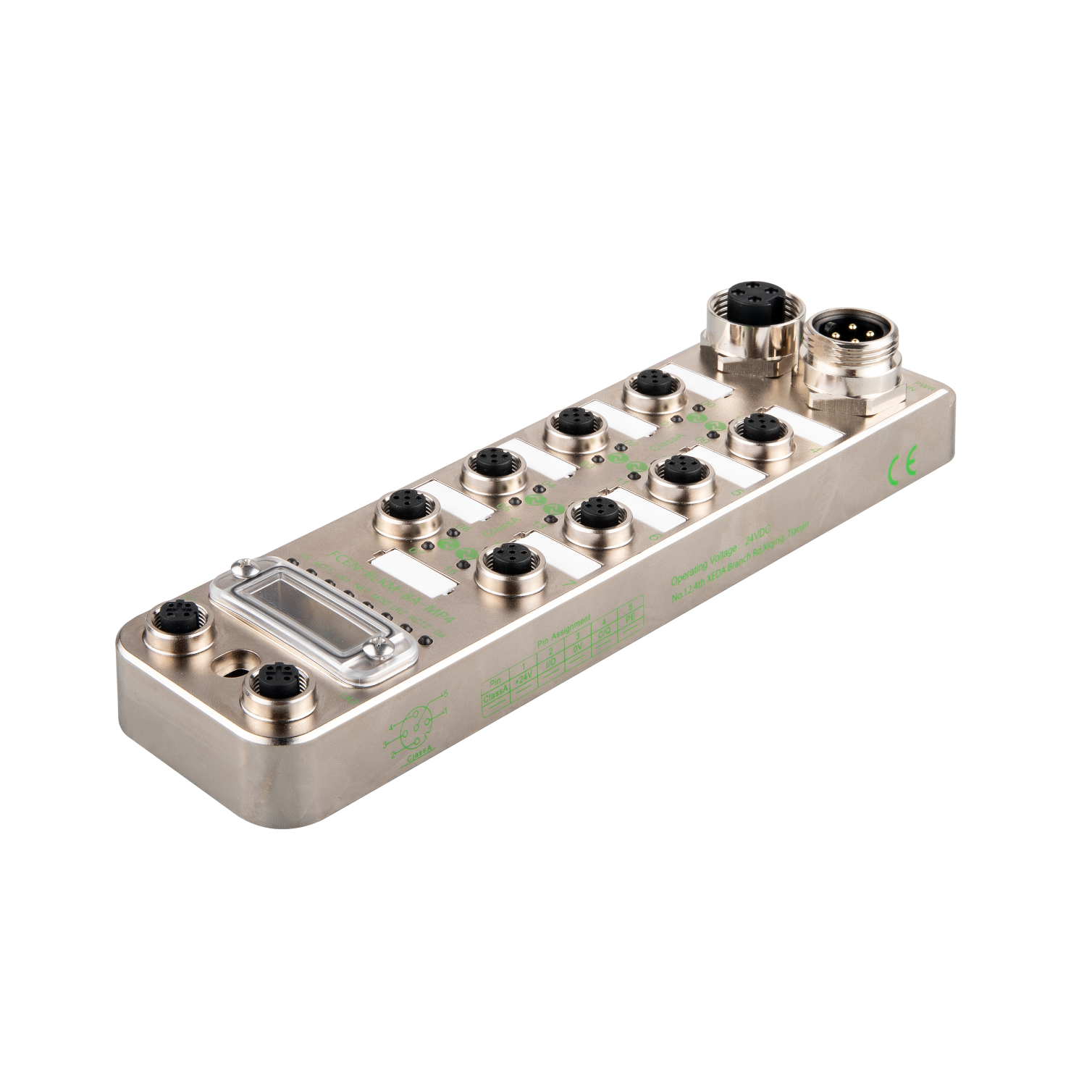

FCEN-8LKM-8A-MP4 IO-Link Master
IO-Link Master, Multiprotocol, PROFINET / EtherNet/IP, Webserver, 8 x Class-A, IO-Link V1.1.3, Max. 16 DI / 8 DO, 8 x M12 A-code 5-pin, 2 x M12 D-code 4-pin, 2 x 7/8“ 4-pin, 24 V DC, Metal housing, IP67
In Stock
$430.10
per unit
Applications: HMI & Controls, Sensors & I/O
Technical Data
| Signal type | IO-Link, Digital I/O |
| Number of channels | 8 Class-A, 8 DI + 8 DI/DO |
| Input type | PNP |
| Output type | PNP |
| Ambient temperature | -25 … +70 °C |
| Storage temperature | -40 … +85 °C |
| Certificate | CE |
| IP rating | IP67 |
| Housing material | Die-cast Zinc |
| Power connection | 2 x 7/8" 4-pin" |
