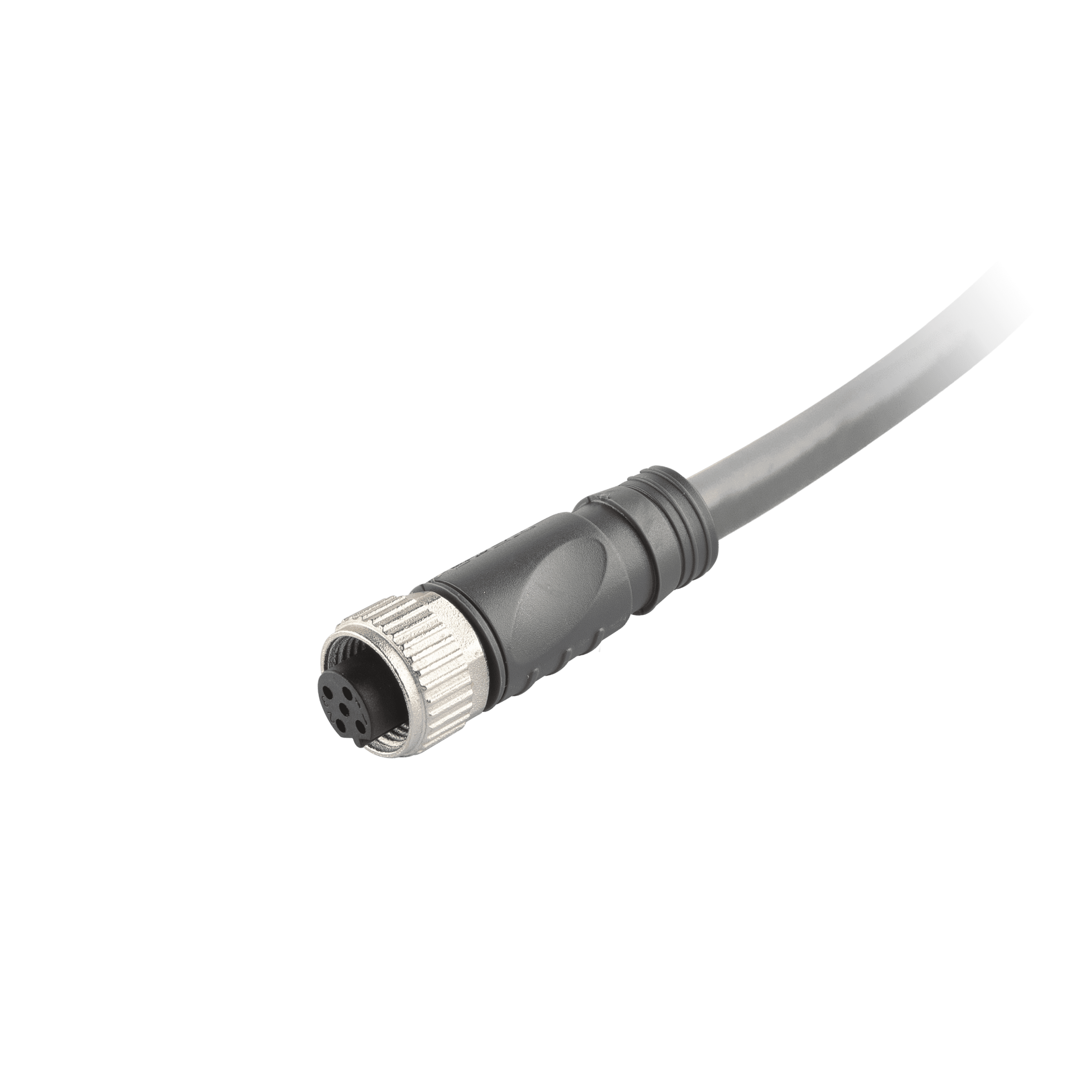

CO12.5-30 Sensor-Actuator Cordset
Sensor-Actuator Cordset, Single-ended, M12 A-code 5-pin Straight Female, with PVC grey jacket 0.34mm² (22 AWG) cable, 30 m
In Stock
$45.02
per unit
Applications: Sensors & I/O
Technical Data
| Coating contact material | Gold plated copper |
| Wire insulation material | PVC |
| Drag chain | Fixed installation |
| LED indicator | NO |
| Cable length | 30 m |
| IP rating | IP67 |
| Wire insulation color | BN, WH, BU, BK,GY |
| Cable jacket material | PVC |
| Nut/bolt material | Zinc die casting |
| The head material | TPU |
| Shielded/Unshielded | NO |
| Material contact | TPU |
| Rated voltage | 250 V AC/DC |
| Cable jacket color | grey |
| Rated current | 4 A |
| Wire cross-section | 0.34 mm² (22 AWG) |
| Flex & Torsion | NO |
| Resistant to welding sparks | NO |
| Product type | Sensor-Actuator Cordset |
| Termination type | Single-end |
| Head 1 Type | M12 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 5 |
| Head 1 Shape | Straight |
| Head 1 Gender | Female |
