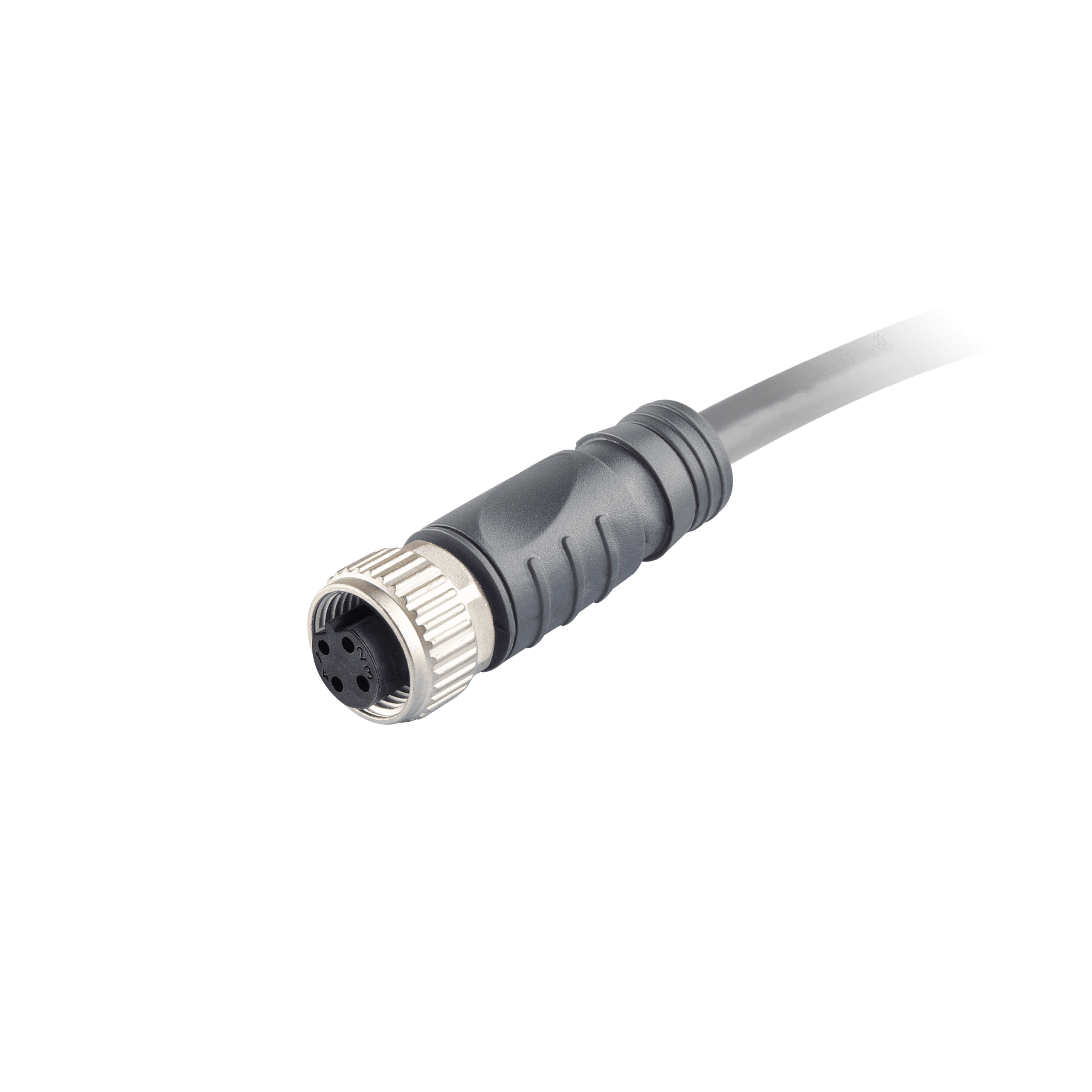

CO12.4-10/EWSR Sensor-Actuator Cordset
Sensor-Actuator Cordset, Single-ended, M12 A-code 4-pin Straight Female, with PVC grey jacket 0.34mm² (22 AWG) Resistant to welding sparks cable, 10 m
In Stock
$27.02
per unit
Applications: Sensors & I/O
Technical Data
| Cable length | 10 m |
| Wire insulation color | BN, WH, BU, BK |
| IP rating | IP67 |
| The head material | TPU |
| LED indicator | NO |
| Wire insulation material | PVC |
| Cable jacket material | PVC |
| Wire cross-section | 0.34 mm² (22 AWG) |
| Shielded/Unshielded | NO |
| Coating contact material | Gold plated copper |
| Rated current | 4 A |
| Material contact | TPU |
| Nut/bolt material | Zinc die casting |
| Rated voltage | 250 V AC/DC |
| Cable jacket color | grey |
| Flex & Torsion | NO |
| Resistant to welding sparks | YES |
| Drag chain | Fixed installation |
| Product type | Sensor-Actuator Cordset |
| Termination type | Single-end |
| Head 1 Type | M12 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 4 |
| Head 1 Shape | Straight |
| Head 1 Gender | Female |
