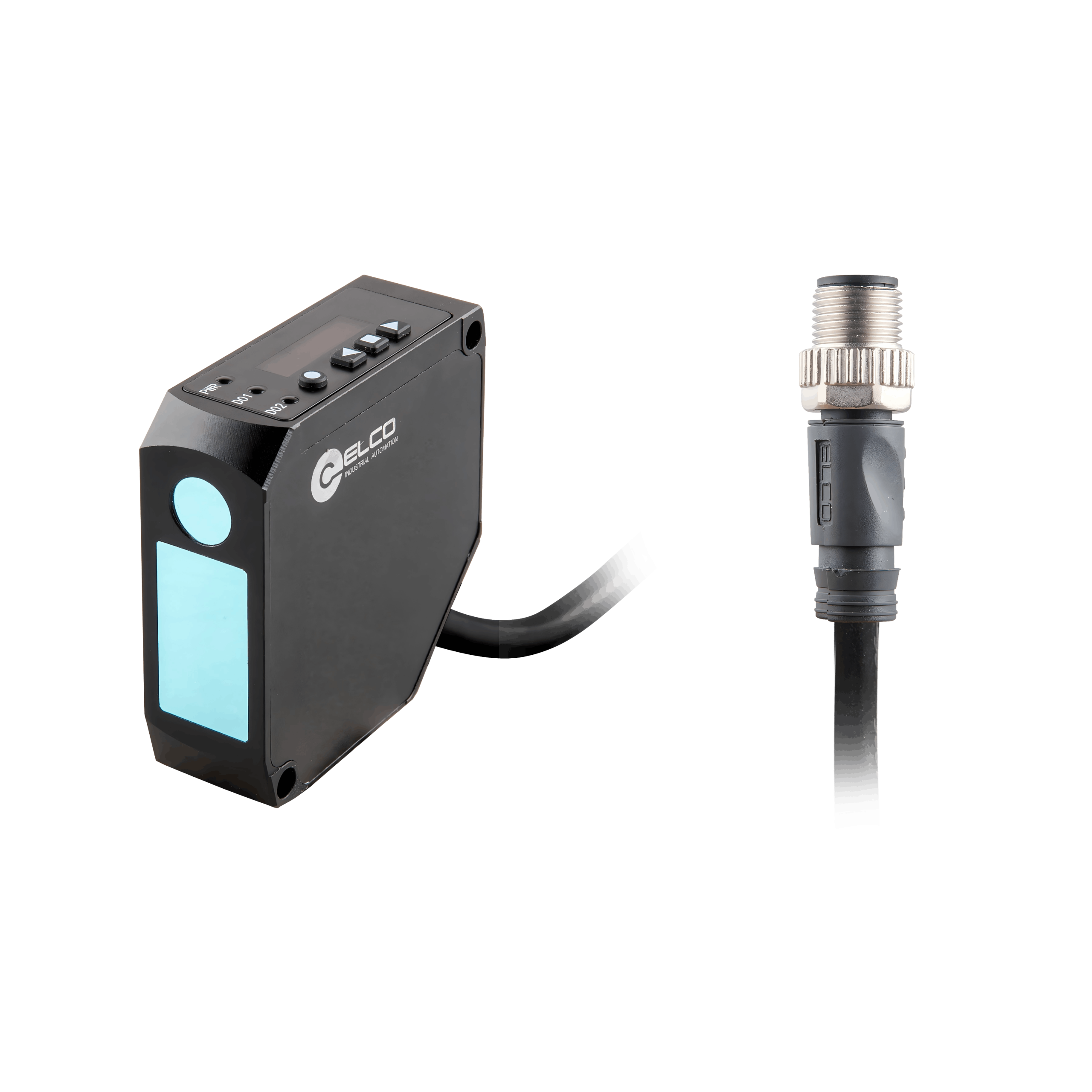

OSM61-KL30C2BLIU6/485-0.3-Q12.8 Distance Sensor
Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 30 mm +/- 4 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector
In Stock
$674.69
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | CMOS ranging |
| Sensing range | 30 ± 4 mm |
| Light source | Red laser / Class 2 |
| Spot size | 0.8 mm @ 30 mm |
| Resolution | 0.001 mm |
| Repeatability | 1 um @ 26 … 34 mm |
| Output type | NPN / PNP / Push-pull & 4 … 20 mA / 0 … 10 V & RS-485 |
| Output status | L.O / D.O |
| Response time | 200 us / 500 us / 1 ms / 2 ms |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 150 mA |
| Ambient temperature | -10 … +50 ℃ |
| Anti-ambient light | ≤ 5000 lux |
| Housing Material | Aluminum alloy |
| Connection | M12 Pigtail |
| IP rating | IP67 |
| Connection type | 0.3 mm Cable + M12, 8-pin |
