Description

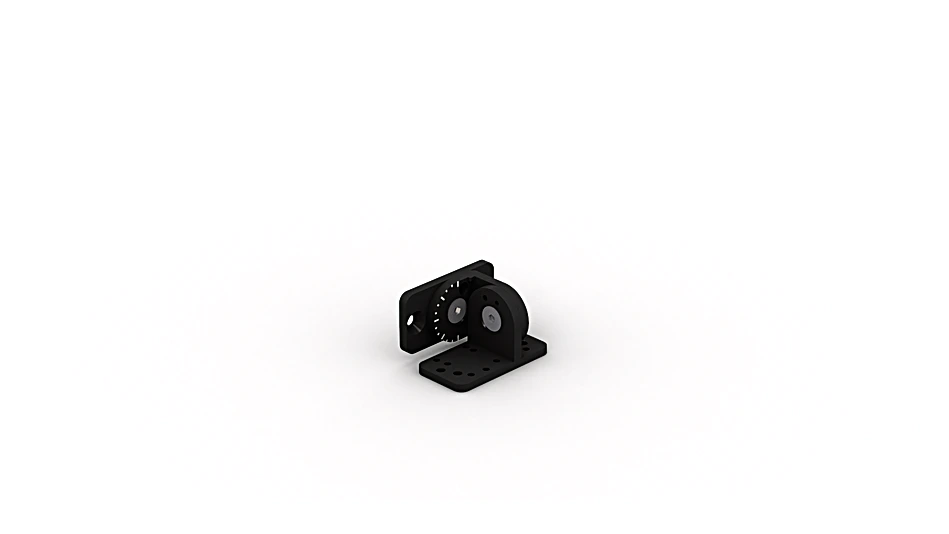

This mounting enables the correct mounting of an imaging sensor (camera or code scanner) on aluminum profiles. The system can be rotated 180° on the vertical plane and 360° on the horizontal plane.
Features at a Glance
- Simple installation
- Flexible alignment options
- Mounting on aluminum profiles
Technical Data
Mechanical Data
| Mounting type, device-side | Screwable with slot nut |
| Mounting type, system-side | Aluminum profile |
| Material | Aluminum, anodised |
| Weight | 88 g |
General Data
| Scope of delivery | 1 × mounting system, 2 × screws M5×14, 2 × screws M4×8, 1 × screw M3×6, 1 × setscrew M3×4, 1× locking pin 3×8 |
| Packaging unit | 1 Piece |
Standards and certificates
 |
