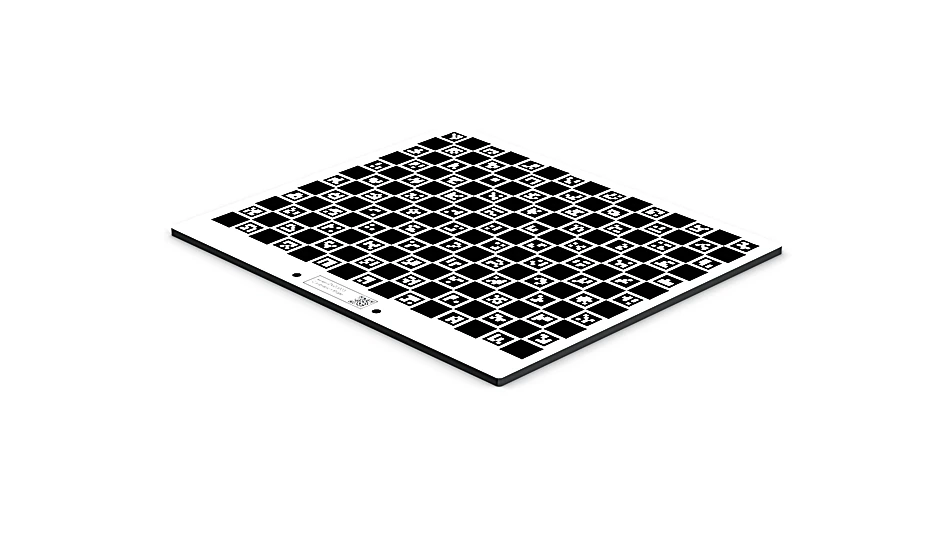

ZVZJ003 Calibration Plate 168 × 210 mm, carbon
Calibration Plate
In Stock
$963.69
per unit
Description
A calibration plate allows for easy and fast calibration during measurement tasks and in Robot Vision applications. Calibration involves coordinate matching, eliminating the distortion caused by the optics. For precise calibration, the calibration plate should be completely in the camera’s visual field and cover at least half of the visual field. Paper-printed calibration patterns result in inaccurate calibration. Opaque plates are suitable for incident light applications.
Features at a Glance
- uniVision compatible (calibration module, robot server)
Technical Data
Optical Data
| Accuracy total | ± 50 µm |
| Accuracy per element | ± 10 µm |
Mechanical Data
| Material | Carbon |
| Weight | 273 g |
General Data
| Coating | Ink |
| Cleaning | With alcohol and microfiber cloth |
