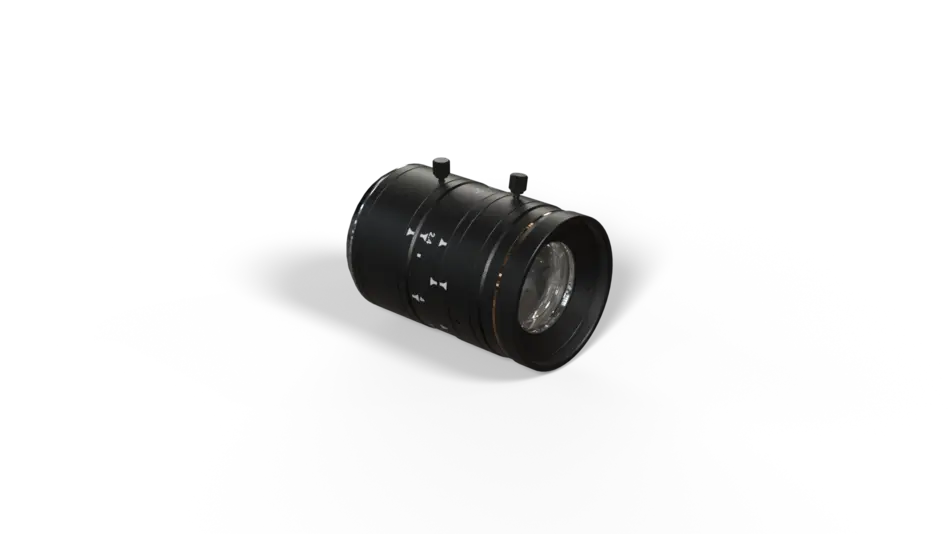

ZVZG302 High-Resolution Lens for machine vision camera
High-Resolution Lens
In Stock
$1,536.00
per unit
Description
High-resolution, fixed focal length lenses with C mount threaded connection can be used, for example, on Machine Vision Cameras with C mount connection. They’re especially well-suited for image chips with minimal pixel sizes. Adjustable aperature values and adjustable focus offer the greatest possible variability for perfect image recordings.
Features at a Glance
- Fixed focal length lens with C mount threaded connection
- For image chips with small pixel sizes
- Adjustable aperture and focus
- Resistant to vibrations and shock
Technical Data
Optical Data
| Focal distance | 25 mm |
| Maximum sensor size | 1,2” |
| Minimum pixel size | 2.74 µm |
| Wavelength spectrum | Visible light |
Mechanical Data
| Lens thread | C-Mount |
| Housing Material | Aluminum, anodised Plastic, PET Plastic, PS |
| Optic Cover | Glass |
| Aperture | arrestable adjustable |
| Setting range aperture | F 2,4…16 |
| Minimum object distance | 150 mm |
| Filter Screw Size | M37 × 0.5 mm |
| Temperature Range | -10 … 50 °C |
| Weight | 165 g |
General Data
| Packaging unit | 1 Piece |
Standards and certificates
 |
Visual Field for 12 MP Camera
| Working Distance | 200 mm | 400 mm | 600 mm |
| Visual Field | 79 x 58 mm | 168 x 123 mm | 258 x 189 mm |
Visual Field for 24 MP Camera
| Working Distance | 200 mm | 400 mm | 600 mm |
| Visual Field | 102 x 88 mm | 219 x 189 mm | 335 x 290 mm |
