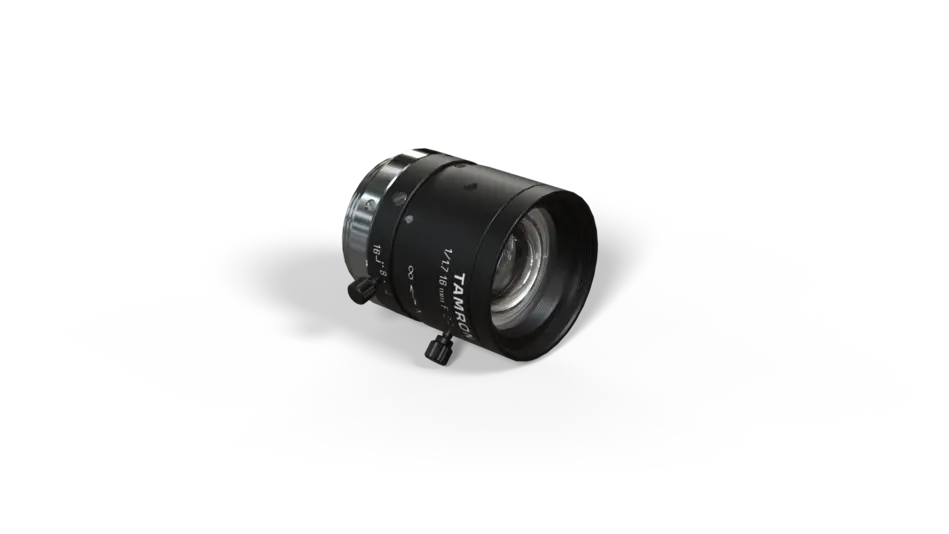

ZVZG103 High-Resolution Lens for Smart Camera and Machine Vision Camera
High-Resolution Lens
In Stock
$780.31
per unit
Description
High-resolution, fixed focal length lenses with C mount threaded connection can be used, for example, on Machine Vision Cameras with C mount connection. They’re especially well-suited for image chips with minimal pixel sizes. Adjustable aperature values and adjustable focus offer the greatest possible variability for perfect image recordings.
Features at a Glance
- Fixed focal length lens with C mount threaded connection
- For image chips with small pixel sizes
- Adjustable aperture and focus
- Resistant to vibrations and shock
Technical Data
Optical Data
| Focal distance | 16 mm |
| Maximum sensor size | 1/1,7 |
| Minimum pixel size | 2.4 µm |
| Wavelength spectrum | Visible light |
Mechanical Data
| Lens thread | C-Mount |
| Housing Material | Aluminum, anodised Plastic, PET Plastic, PS |
| Optic Cover | Glass |
| Aperture | arrestable adjustable |
| Setting range aperture | F 2,4…16 |
| Minimum object distance | 100 mm |
| Filter Screw Size | M27 × 0.5 mm |
| Temperature Range | -20 … 60 °C |
| Weight | 67 g |
General Data
| Packaging unit | 1 Piece |
Standards and certificates
 |
Visual Field for 1.6 MP Camera
| Working Distance | 200 mm | 400 mm | 600 mm |
| Visual Field | 57 x 43 mm | 120 x 90 mm | 182 x 137 mm |
