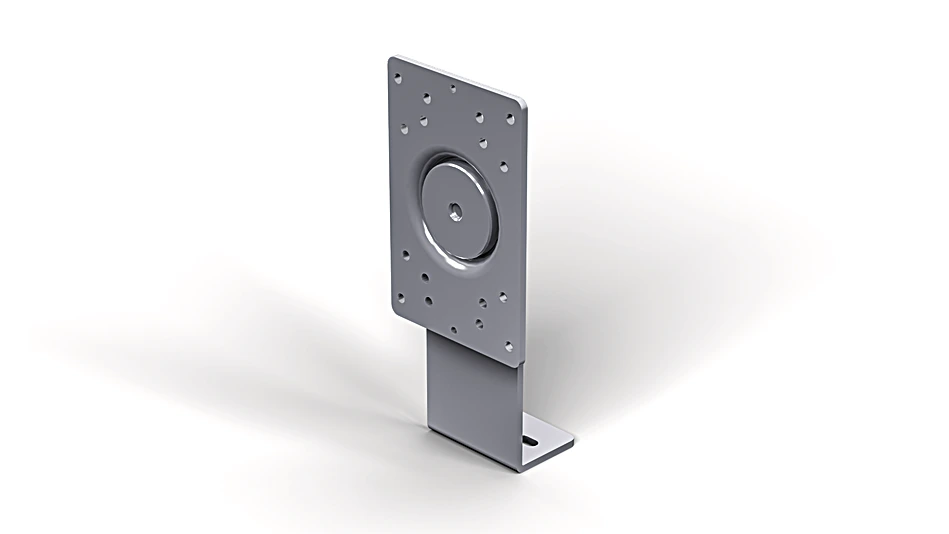

ZNNX004 Mounting Bracket for 1P, 1N, 1T and 1M Housings and Reflectors
Mounting Bracket Set
In Stock
$54.40
per unit
Description
The rugged, stainless steel mounting bracket offers all-around full flexibility for installation. Sensors with1P, 1N, TA and M housings, as well as RE6151Bx, Z90R005, ZRME03B01 and RE9538BA reflectors, can be rotated and set in the horizontal plane anywhere within a 360° range. Included threaded holes simplify installation and make it quicker. 1P = 50 × 50 × 20 × 30 mm 1N = 76 × 32.5 ×18 mm TA = 81 × 55 × 30 mm M = 49.1 × 57.8 × 27 × 16 mm
Features at a Glance
- Rugged stainless steel design
- Quick sensor installation thanks to threaded holes
- Universal mounting plate suitable for sensors with 1P, 1N, TA and M housings, as well as reflectors
- Highly flexible thanks to 360° setting angle range
Technical Data
Mechanical Data
| Material | Stainless steel, V2A (1.4305 / 303) |
| Weight | 226 g |
General Data
| Scope of delivery | 1 × mounting bracket |
| Packaging unit | 1 Piece |
| Use | for square housing |
