Description

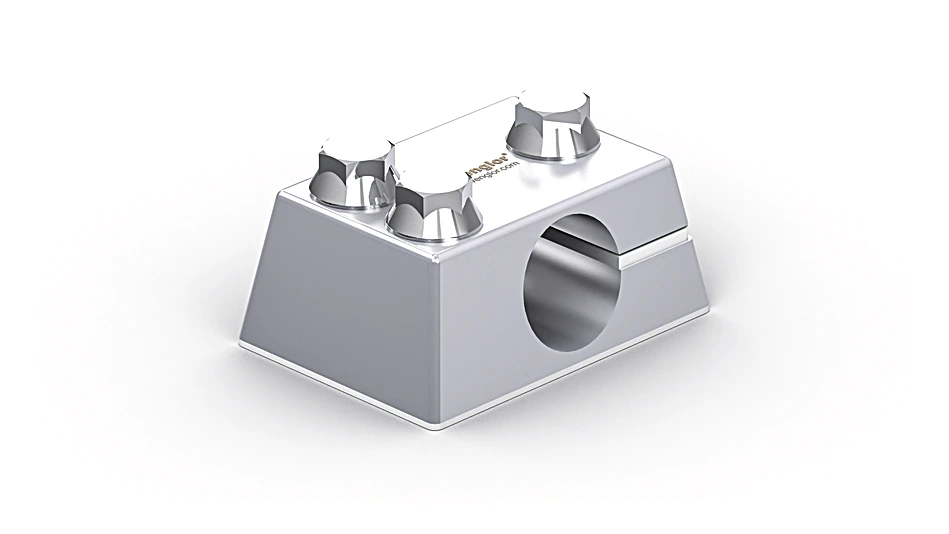

This complete system, which integrates seamlessly into the machine, also includes the mounting clamp. It allows the InoxSens sensors or mounting tubes to be mounted on your system using hygienically designed materials.
Features at a Glance
- Resistant to cleaning agents
- Made with food safe materials that are FDA approved
- Hygienic design makes it easy to clean
- Hygiene-compatible screws included in delivery
Technical Data
Mechanical Data
| Mounting type, device-side | Terminals, screws |
| Mounting type, system-side | can be screwed |
| Material | Rubber, EPDM (FDA) Stainless steel, V4A (1.4404 / 1.4435 / 316L) |
| Weight | 325 g |
General Data
| Scope of delivery | 1 × mounting clamp 2 × M6 screws × 40 mm |
| Packaging unit | 1 Piece |
| Use | for round housing For mounting tube As a base holder |
| Hygienic Design | X |
| Detergent resistant | X |
Standards and certificates
 |
Examples of Installation
|
|
