ZLSZ002 Mounting for hole pattern 35 × 80 mm / 20 × 50 mm
Mounting
In Stock
$50.08
per unit
Description

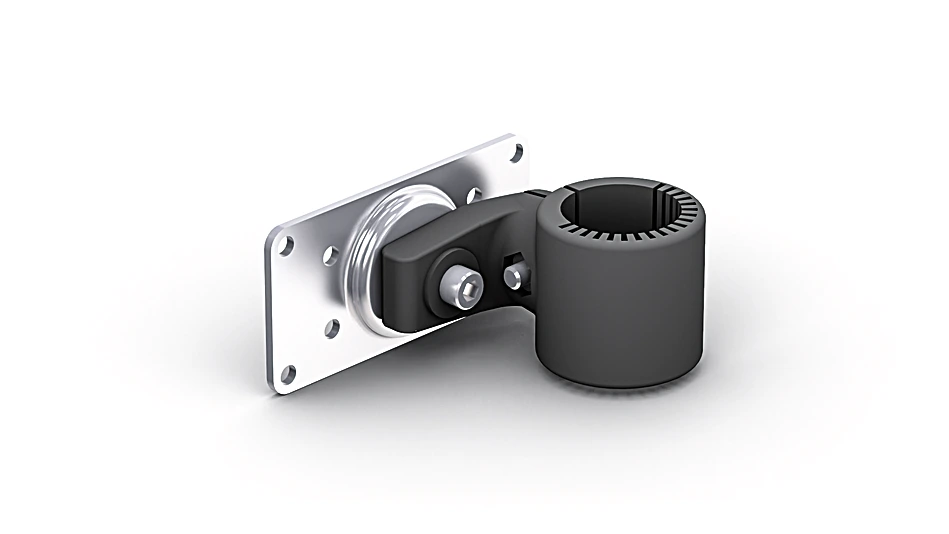

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
Features at a Glance
- Simple installation
- Flexible alignment options
- Plastic
Technical Data
Mechanical Data
| Mounting type, device-side | Screwable to mounting plate |
| Mounting type, system-side | Mounting bar |
| Material Mounting Head | Plastic, PA |
| Material Mounting Plate | Stainless steel, V2A (1.4301 / 304) |
| for Round Profile Diameter | 30 mm |
| Weight | 160 g |
General Data
| Packaging unit | 1 Piece |
| Use | for square housing |
Standards and certificates
 |
Alignment possibilities
 |
