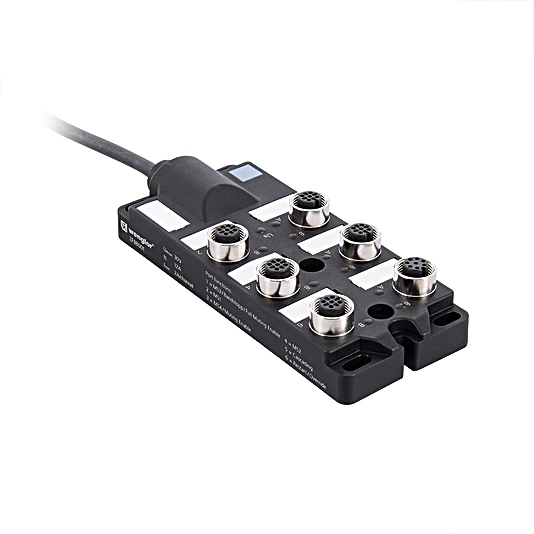

ZFBB001 Connection Box for Muting Sensors 6-ports; for SEFG and SEFB
Connection box for muting sensors
In Stock
$516.46
per unit
Applications: Sensors & I/O
Description
The connection box provides four connections for muting sensors and supports all of the muting functions included with SEFG safety light curtains and SEFB multi-light arrays. Furthermore, the connection box makes it possible to simultaneously execute muting and cascading.
Features at a Glance
- Connection of external muting signals
- Connection of up to 4 muting sensors
- Simultaneous execution of muting and cascading
- Reset and override functions available by connecting a pushbutton
Technical Data
Electrical Data
| Number of muting ports | 1 |
| Number of cascading ports | 5 |
Mechanical Data
| Coding | A-coding |
| Cable length (L) | 1 m |
| Outer diameter (d) | 9.7 mm |
| Wire cross-section | 0.34 / 1 mm² |
| Display | LED |
| Degree of Protection | IP65 IP67 |
| Temperature Range | -30 … 90 °C |
| Housing Material | Plastic |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, PP |
| Halogen-free | yes |
| Drag Chain Suitable | yes |
| Bending radius (used in motion) | 10 × d |
| Type of Connection Power | M12 × 1; 8-pin |
| Muting connection | 5 × M12; 4-pin |
| Cascading connection | M12 × 1; 8-pin |
| Weight | 262 g |
General Data
| Scope of delivery | 1 × connection box |
| Packaging unit | 1 Piece |
Function
| External muting signals | yes |
| Cascading | yes |
| Muting sensors | Max. 4 pieces |
| Reset override | yes |
Standards and certificates
 |
Connection Diagram
 |
Connection Table
 |
