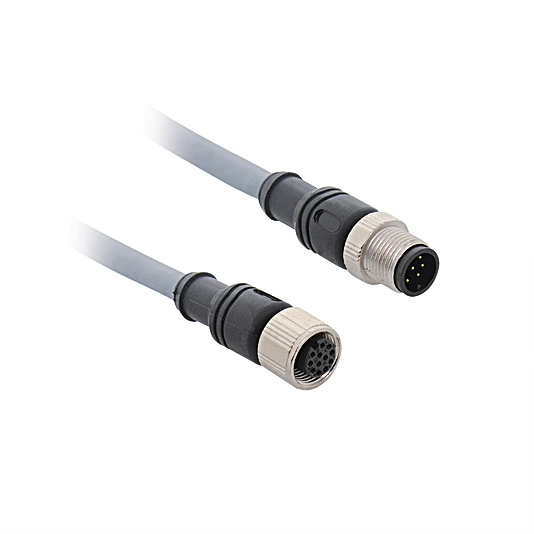

ZDNV006 Adaptor Cable M12 × 1, 8-pin – M12 × 1, 12-pin
Adaptor Cable
In Stock
$164.92
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Screened
Technical Data
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | M12 × 1, 8-pin |
| Connection 2 | Socket, straight |
| Connection mode 2 | M12 × 1, 12-pin |
| Torque | M12: 0,6 Nm |
| Coding | A-coding |
| Cable length (L) | 500 mm |
| Outer diameter (d) | 6.3 mm |
| Wire cross-section | 0.25 mm² |
| Degree of Protection | IP67 |
| Temperature Range | -25 … 85 °C |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, PP |
| Material Sleeve Nut | Zinc diecasting, nickel-plated |
| Screened | yes |
| Halogen-free | yes |
| Weight | 58 g |
General Data
| Packaging unit | 1 Piece |
Pin assignment
  |
Connection Diagram
 |
