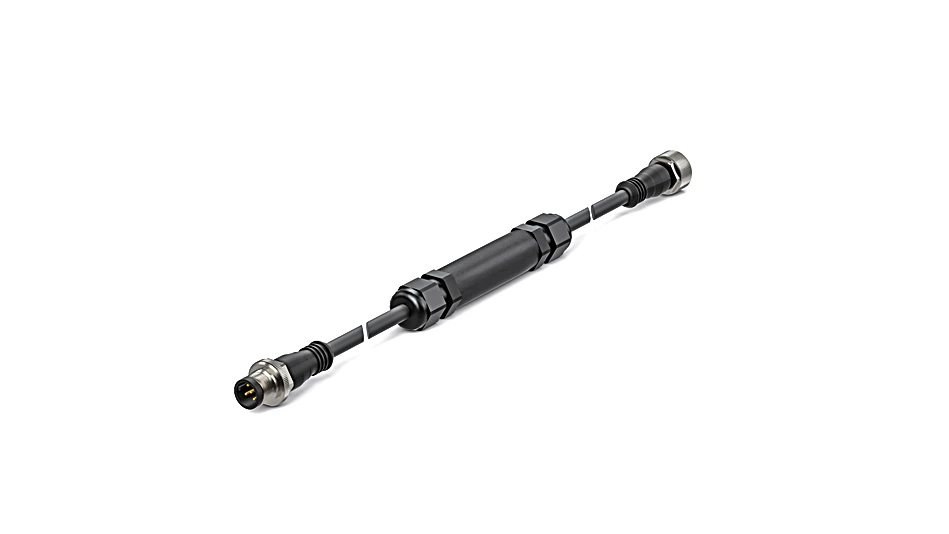

ZDNG001 PNP-NPN Converter for multi-UV dome light
PNP-NPN Converter
In Stock
$169.85
per unit
Applications: Sensors & I/O
Description
The ZDNG001 is designed for use with the multi-UV dome lights. The cable converts PNP signals to NPN signals at pin 2 on the M12-5P plug. It is a simple accessory for easier connection between cameras and lights.
Features at a Glance
- Easy integration
- Integrated PNP to NPN signal converter
- For use with multi-UV dome light
Technical Data
Electrical Data
| Switching Frequency | < 310 Hz |
| Response Time | 0.9 µs |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | M12 × 1, 5-pin |
| Connection 2 | stripped |
| Cable length (L) | 2 m |
| Weight | 140 g |
General Data
| Scope of delivery | 1 × PNP-NPN converter |
| Packaging unit | 1 Piece |
Standards and certificates
  |
Connection Diagram
 |
