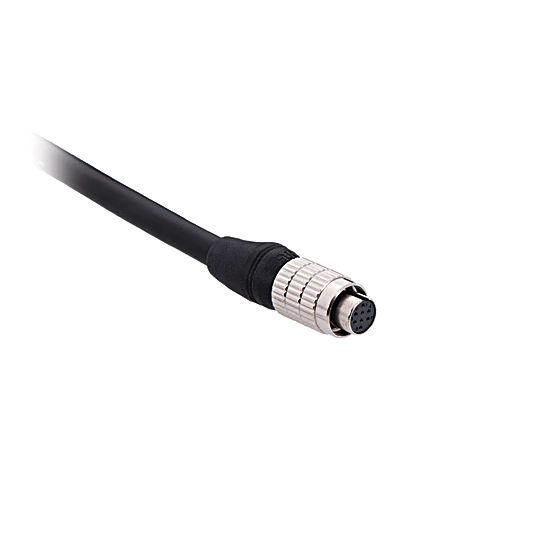

ZDML001 Connection Line Hirose HR25; 8-pin
Connection Line
In Stock
$227.69
per unit
Applications: Sensors & I/O
Technical Data
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | Hirose HR25, 8-pin |
| Connection 2 | stripped |
| Cable length (L) | 5 m |
| Outer diameter (d) | 5 mm |
| Wire cross-section | 0.1 mm² |
| Temperature Range | -10 … 80 °C |
| Jacket color | black |
| Cable Jacket Material | Plastic, PVC |
| Material Wire Insulation | Plastic, PVC |
| Screened | yes |
| Weight | 238 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
 |
