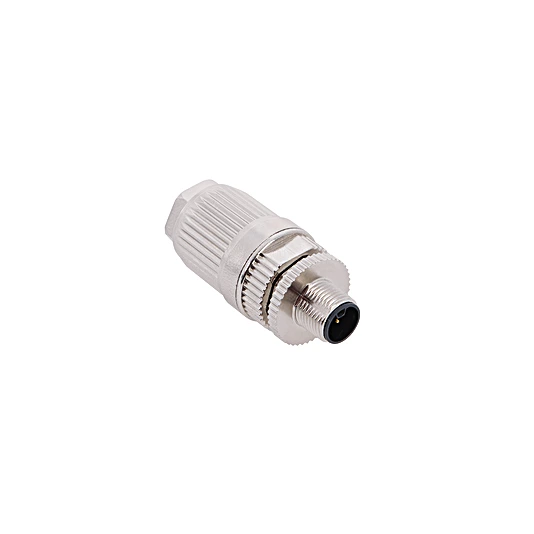

ZDJP001 Connector Plug M12 × 1; 5-pin, L-coding
Connector Plug
In Stock
$78.35
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Plug M12 × 1, straight
Technical Data
Electrical Data
| Rated current | 12 A |
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | M12 × 1, 5-pin, L-cod. |
| Torque | M12: 0,4 Nm |
| Coding | L-coding |
| Outer diameter (d) | 8 … 10 mm |
| Wire cross-section | ≤ 1.5 mm² |
| Assembling | Screw Terminal Technology |
| Degree of Protection | IP67 |
| Temperature Range | -40 … 90 °C |
| Weight | 59 g |
General Data
| Scope of delivery | 1 × connector plug |
| Packaging unit | 1 Piece |

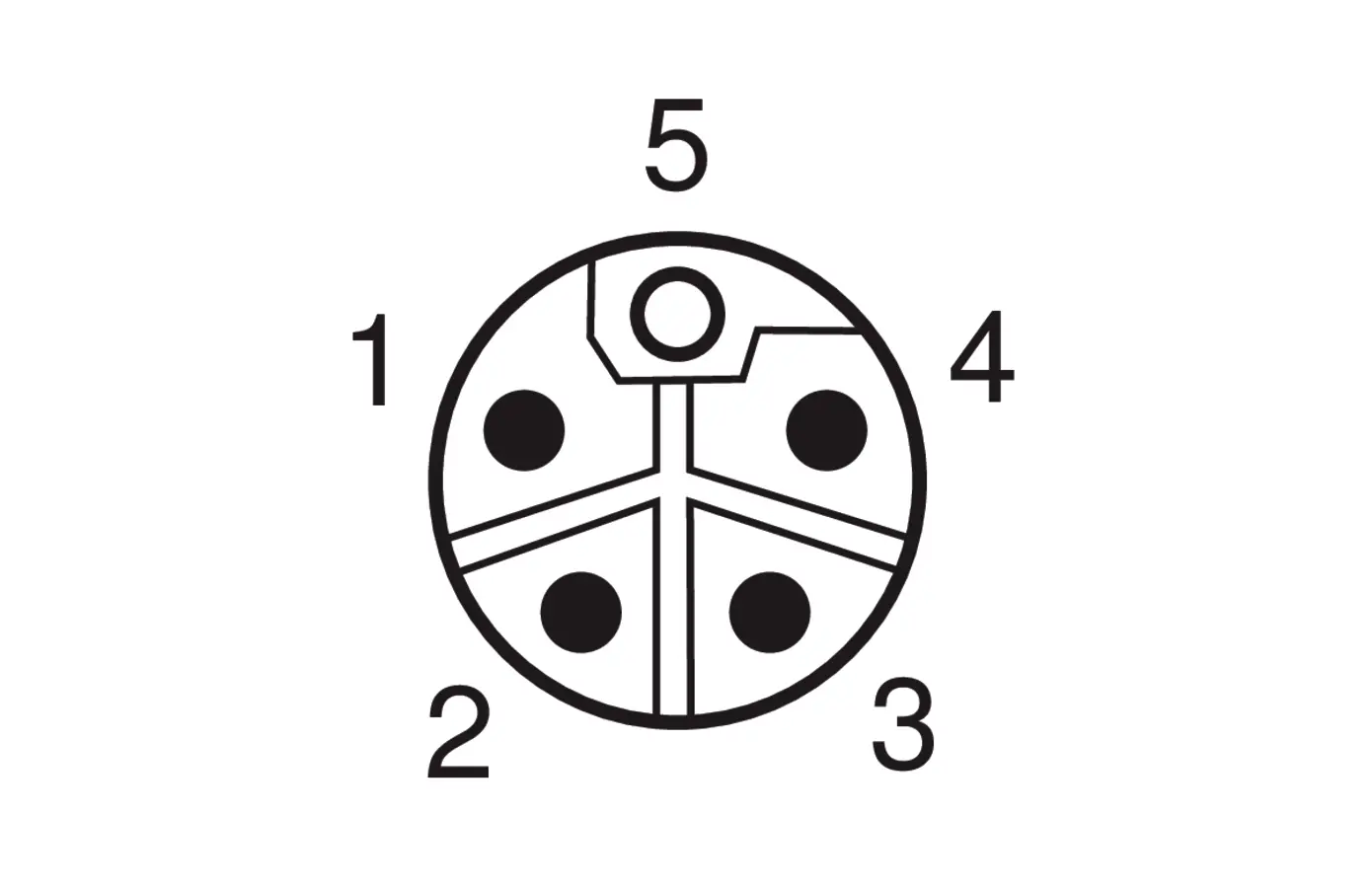

Pin assignment
 |

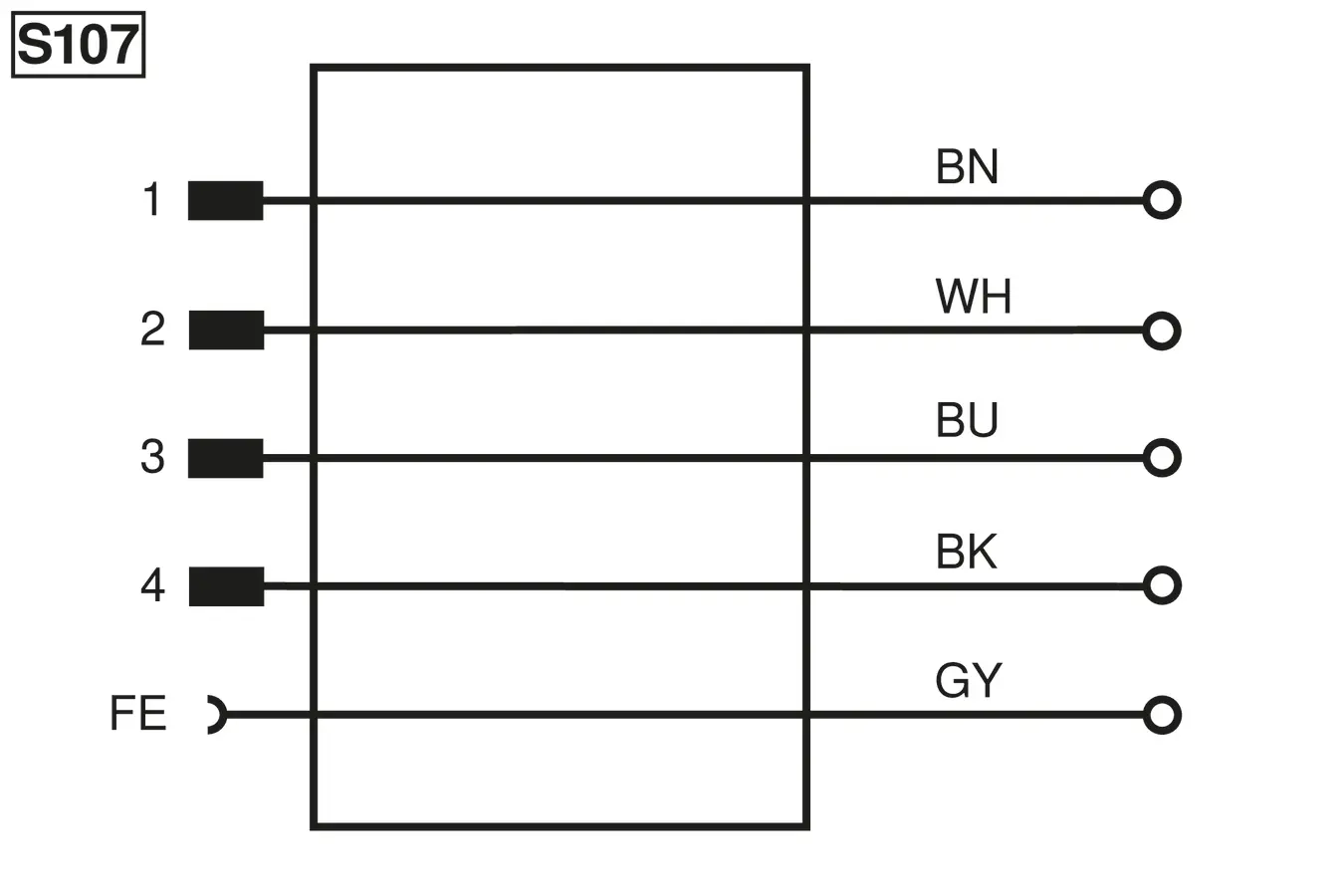

Connection Diagram
 |
