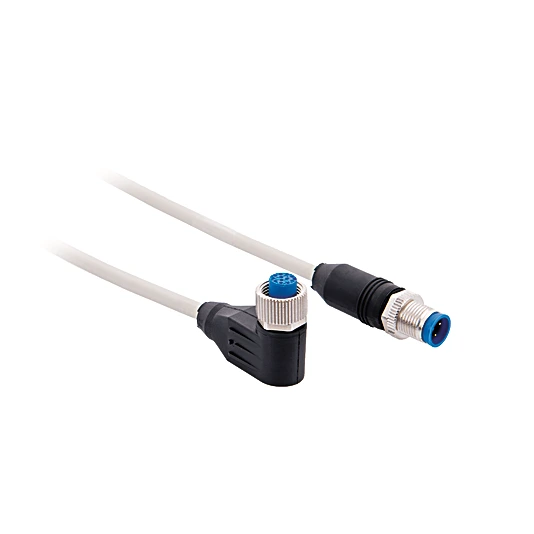

ZDCV004 Connection Cable M12 × 1; 12-pin – M12 × 1, 4-pin
Connection Cable
In Stock
$432.85
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Screened
- Drag chain suitable
- Suitable for robots
Technical Data
Electrical Data
| Supply Voltage | ≤ 30 V DC |
Mechanical Data
| Connection 1 | Socket, angled |
| Connection mode 1 | M12 × 1, 12-pin |
| Connection 2 | Plug, straight |
| Connection mode 2 | M12 × 1, 4-pin |
| Torque | M12: 0,6 Nm |
| Coding | A-coding |
| Cable length (L) | 2 m |
| Outer diameter (d) | 5 mm |
| Wire cross-section | 0.25 mm² |
| Degree of Protection | IP67 |
| Temperature range (fixed installation) | -40 … 70 °C |
| Temperature range (moving application) | -20 … 70 °C |
| Jacket color | gray |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, TPE |
| Material Sleeve Nut | Brass, nickel-plated |
| Screened | yes |
| Halogen-free | yes |
| Drag Chain Suitable | yes |
| Bending radius (fixed installation) | > 5 × d |
| Bending radius (used in motion) | > 7,5 × d |
| Bending cycles | ≤ 2000000 |
| Torsional stress | ≤ 180°/m |
| Weight | 121 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
